My first SBC is finally alive!

[ccureau]

Some of the regulars here might remember me...I started designing and building my first 6502-based board back around 2004. And because of any number of things (mostly life events), I never got it finished.

Thankfully, things are better now.

I finally bought an oscilloscope about a month ago and started building up the breadboard again. A scope is an invaluable tool...I never would have been able to debug without it! I've learned a lot, both on my own and from the people I've spoken to on these forums. It was quite an amazing feeling to finally get characters echoed back to me after I typed them in the terminal.

Just wanted to thank everyone for helping and pointing me in the right direction. I would have had that much more trouble without you.

Next I'll go about testing my RAM chips, and then work on getting a cc65 target completed. After that I'll start working on an IDE interface and enough code to start a simple OS. I will be around here more often again, probably asking more questions...but hopefully I can give back too.

[BigDumbDinosaur]

When will we being seeing some pictures?

[ccureau]

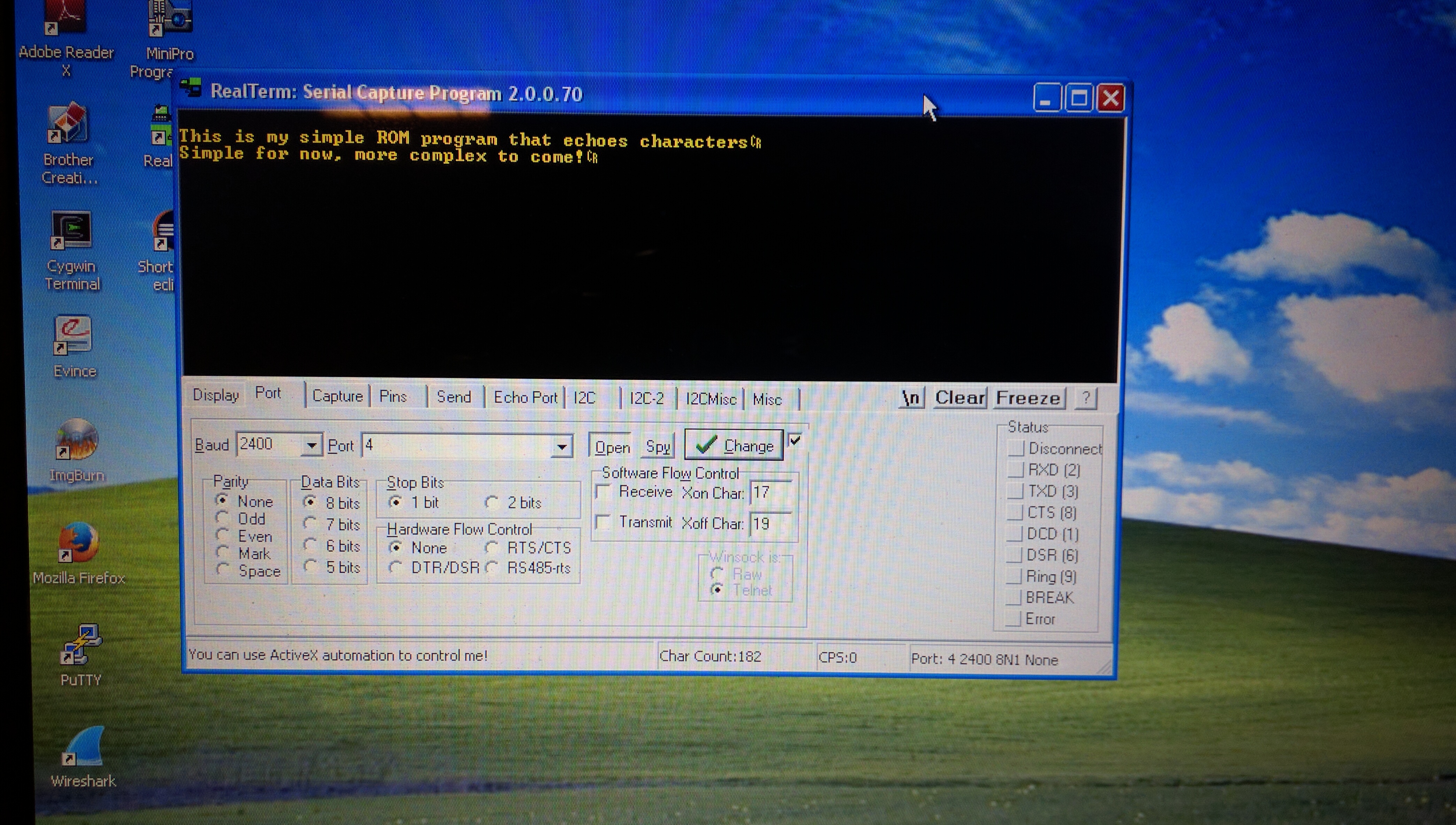

I've attached the only pictures I've taken so far...I'll take some more as time goes on and it does things more interesting than just echoing characters!

The parts list:

• Rockwell R65c02
• WDC 65c51
• CAT28C64 (8k ROM)
• 74HC138 (memory decoding)
• 74HC04 (Inverter)
• Toshiba TC55328P (32k RAM)
• 74HC00 (R/W signal)
• 1.8432MHz oscillator (both PHI2 and ACIA input)

[BigEd]

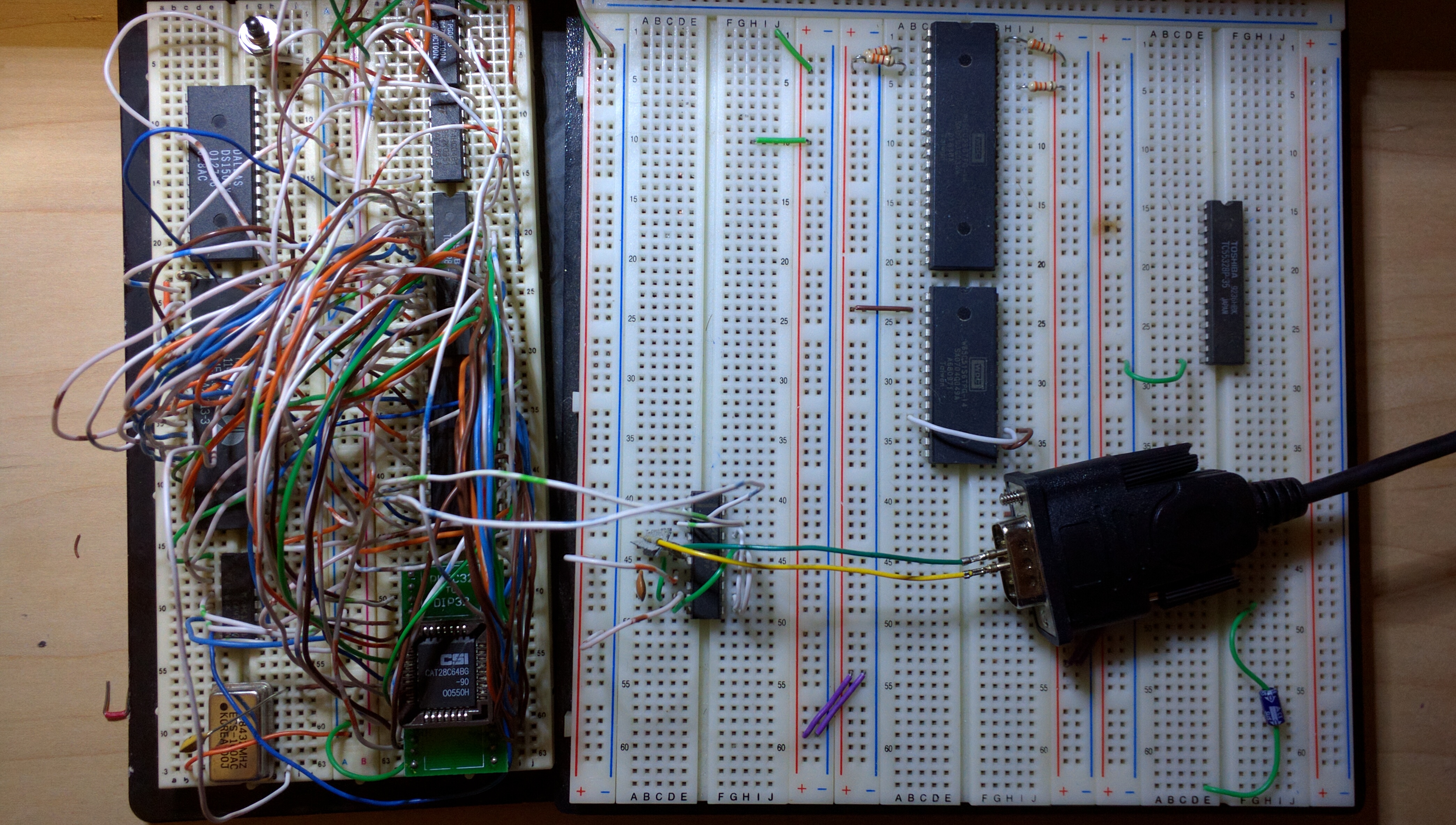

Great contrast there between the original board and the overflow board! Happy to hear that you got your project working - seems like you left off before some long-standing members even joined up here, including me.

[Bor_Ed]

Great job on solving the issues on wiring
And I can sign on the statement that oscilloscope is the tool for a hacker, you've gotten in to using it quite well in short span of time too
