1080p HD Video on custom FPGA/VDAC/2MBx18 SyncRAM board

[ElEctric_EyE]

Random 8x8 characters seem functional.

Code: Select all

                  LDX #2047                ;plot 2048 random ASCII characters, during HSYNC, using HDL PRNG for Character Plot Function
rock              LDA rng
                  STA color                ;foreground color
                  LDA rng
                  STA bcolor               ;background color

                  LDA rng
                  AND #%0000000000111111   ;[7:0] bits is ASCII value, only 96 characters available so mask off [5:0]
                  ORA #%0000000100000000   ;set bit [8] to 1 for C-64 font
                  STA Att

NG                LDA rng                  ;get 16-bit sample from HDL pseudo random number generator
                  AND #%0000011111111111   ;mask off 11 bits
                  CMP #1920-8
                  BCS NG                   ;if random sample is >1911 get another random sample

                  STA cX

NG1               LDA rng
                  AND #%0000011111111111   ;mask off 11 bits
                  CMP #1080-8
                  BCS NG1                  ;if random sample is >1071 get another sample

                  BCF0C $FFFFE             ;Branch if Control Flag 0 is Clear (0). CF0 is HSYNC input, so branch to itself and wait until hsync = 1, a non display period

                  STA cY                   ;plot Character!

                  DEX
                  BNE rock
imp               JMP imp

[ElEctric_EyE]

Random Rectangle Fill function has been fixed.

Code: Select all

                 LDX #49                  ;plot 50 rectangles using PRNG and Fill Function
rock              LDA rng
                  STA color

NG                LDA rng                  ;get 16-bit sample from HDL pseudo random number generator
                  AND #%0000000011111111   ;mask off 2^8 bits for 256 pixel width
                  CMP #256
                  BCS NG                   ;if random sample is >255 get another random sample

                  STA fXlen

NG1               LDA rng
                  AND #%0000000011111111   ;mask off 2^8 bits for 256 pixel height
                  CMP #256
                  BCS NG1                  ;if random sample is >255 get another sample

                  STA fYlen

NG2               LDA rng
                  AND #%0000011111111111   ;mask off 2^11 bits
                  CMP #1920-256            ;subtract max width to make sure it fits
                  BCS NG2

                  STA fXs

NG3               LDA rng
                  AND #%0000011111111111   ;mask off 2^11 bits
                  CMP #1080-256            ;subtract max height to make sure it fits
                  BCS NG3

                  BCF0C $FFFFE            ;Branch if Control Flag 0 is Clear (0). CF0 is HSYNC input, so branch to itself and wait until hsync = 1, a non display period

                  STA fYs                  ;Rectangle Fill!

                  DEX
                  BNE rock
imp               JMP imp

[ElEctric_EyE]

I just noticed in all the 65Org16 software I've been posting there is a glaring mistake. But Bitwise's As65 automatically takes care of the error. The error is

Code: Select all

BCF0C $FFFFE

It must have been truncating the highest hex value so an incorrect

Code: Select all

BCF0C $FFFFE

results in an correct

Code: Select all

BCF0C $FFFE

[ElEctric_EyE]

I've been trying abit of software that utilizes the Square Root Function and the Plot function of the simple LineGen accelerator. I've tested the Square Root Function on a few numbers for Xs and Ys and it appears to work in simulation. It takes 2 16-bit registers named Xs & Ys, squares them both then performs the square root mathematics according to Jack Crenshaw's formulas. You can read about that here.

Code: Select all

8/26/2014 smg    Programming the 16-bit 2D Graphics 'LineGen' Accelerator

FUNCTION...............VARIABLE = 'description'....................R(ead)/W(rite)
________________________________________________________________________________

Line Generator............color = pixel color..........................RW
                            lx0 = X position start.....................RW
                            ly0 = Y position start.....................RW
                            lx1 = X position end.......................RW
                            ly1 = Y position end(*)....................RW

Rectangle Fill............color = pixel color..........................RW
                          fXlen = Horizontal length....................RW
                          fYlen = Vertical length......................RW
                            fXs = X position start.....................RW
                            fYs = Y position start(*)..................RW

Pixel Plot................color = pixel color..........................RW
                             Xp = X position...........................RW
                             Yp = Y position(*)........................RW

Read Pixel Color.............Xr = X position...........................RW
                             Yr = Y position(*)........................RW
                      colordata = 5-6-5 16bit R-G-B color data.........R

Copy & Paste Rectangle....bXlen = Horizontal length....................RW
                          bYlen = Vertical length......................RW
                            bXc = X position start of copy.............RW
                            bYc = Y position start of copy.............RW
                            bXp = X position start of paste............RW
                            bYp = Y position start of paste(*).........RW

Character Plot............color = pixel color..........................RW
                         bcolor = background pixel color...............RW
                            Att = ASCII character + font...............RW
                             (0000000axxxxxxxx. xxxxxxxx = 8bit ASCII)
                             (a = 1 C64, a = 0 DOS. FONTS)
                             cX = X position...........................RW
                             cY = Y position(*)........................RW

SIN LUT Generator........Xblock = (0..15) BRAM LUTs for X coordinates..RW
                         Yblock = (0..15) BRAM LUTs for Y coordinates..RW
                        Xoffset = placement within 1920 Horizontal.....RW
                        Yoffset = placement within 1080 Vertical.......RW
                          xfreq = # of SIN repetition within LUT1......RW
                          yfreq = # of SIN repetition within LUT2......RW
                         Xphase = (0..1023) Phase input to LUT1........RW
                         Yphase = (0..1023) Phase input to LUT2(*).....RW

Square Root Generator........Xs = 16bit number.........................RW
                             Ys = 16bit number(*)......................RW
                           Root = SQRT(Xs^2 + Ys^2)....................R
________________________________________________________________________________
NOTES:
(*) This Verilog Hardware Function is initiated after a write to these registers.

----------------------------------------------------------------------------------------------------
HMMM, I just noticed, no more color effects when posting here. I was trying to highlight the used functions...

So, this is the software that attempts to plot the first quadrant of a circle.

Code: Select all

                  LDY #100
                  STY RADIUS

                  LDX #0
NX                STX Xs

                  STX Xp
                  STY Ys                  ;SQRT!

                  LDA Root                ;Root = SQRT(Xs*Xs + Ys*Ys)

                  BCF0C $FFFFE            ;Branch if Control Flag 0 is Clear (0). CF0 is HSYNC input, so branch to itself and wait until hsync = 1, a non display period

                  STA Yp                  ;PLOT!

                  INX
                  CPX #100
                  BNE NX
imp               JMP imp

[ElEctric_EyE]

Woops. I realized the SQRT formula is incorrect as I need a Y value to be calculated for every X and Radius, so the HDL should perform a SQRT(Rs*Rs-Xs*Xs), i.e. Y=SQRT(R^2-X^2). I'll fix this and also use the Character Plot routine to plot out the X, Y and RADIUS values on the screen. I can see it is still not a correctly plotted quadrant of a circle.

[ElEctric_EyE]

Fixed the SQRT function, it was looping 1 cycle too many for 'i'. Also now it doesn't shift the result in cycle CALC6 like in the old version.

Code: Select all

//SQRT state machine

			SQRTINIT:
				state <= CALC3;

			CALC3:
				state <= CALC4;

			CALC4:
				state <= CALC5;

			CALC5:
				if (i != 14)
					state <= CALC3;
					else state <= WAIT;

Code: Select all

//square root generator

		SQRTINIT:
			begin
				LGREADY <= 0;
				i <= 0;
				rem <= 0;
				Root <= 0;
				a <= Rs*Rs - Xs*Xs;
			end

		CALC3:
			begin
				Root <= Root << 1;
				rem <= ((rem << 2) + (a >> 30));
			end

		CALC4:
			begin
				a <= a << 2;
				Root <= Root + 1;
			end

		CALC5:
			begin
			i <= i + 1;
			if (Root <= rem) begin
				rem <= rem - Root;
				Root <= Root + 1;
			end
				else Root <= Root - 1;
			end

[ElEctric_EyE]

Simple program to draw 1 quadrant as X goes to radius.

Code: Select all

                  LDA #%1111100000000000  ;red pixels
                  STA color

                  LDY #100
                  STY RADIUS

                  LDX #500
                  STX TEMP2               ;x position of characters

                  LDWi $0000              ;LDW #$0000. character Y position

                  LDX #0
NX                STWzp TEMP              ;STW $0009. y position of characters
                  STX Xs                  ;Xs starts at 0 and goes to radius
                  STX Xp
                  LDY RADIUS
                  STY Rs                  ;SQRT! Halt the cpu, calculate and put value in Root.

                  LDA Root                ;Root = Y = SQRT(Rs*Rs - Xs*Xs). From: R^2 = X^2 + Y^2

                  BCF0C $FFFFE            ;Branch if Control Flag 0 is Clear (0). CF0 is HSYNC input, so branch to itself and wait until hsync = 1, a non display period

                  STA Yp                  ;PLOT Pixel! Halt the cpu and plot.

                  plot_hex                ;MACRO. plot hex value in A accumulator  starting @ coordinates (TEMP2,TEMP).

                  INW                     ;
                  INW                     ;
                  INW                     ;
                  INW                     ;
                  INW                     ;
                  INW                     ;
                  INW                     ;
                  INW                     ;add 8 pixels for plotting on next line

                  INX
                  CPX RADIUS
                  BNE NX
imp               JMP imp

I don't like it.... Y value is shown in hex. I'll have to revisit variable diameter circles later. Need to push on!

[ElEctric_EyE]

6 functions are tested here. The software is well documented, trying to do myself a favor for future viewing. Pix to follow soon.

Code: Select all

;----Draw Green Border. Purpose: Test +-dx vs +-dy Line drawing-----------------

                  LDA #%0000011111100000       ;green pixel for a Border
                  STA color

                  LDA #0                       ;from top left to top right
                  STA lx0
                  STA ly0
                  LDA #1919
                  STA lx1
                  LDA #0
                  STA ly1                      ;Draw Line!

                  STA lx1                      ;from top left to bottom left
                  LDA #1079
                  STA ly1                      ;DRAW Line!

                  STA ly0                      ;from bottom right to bottom left
                  LDA #1919
                  STA lx0
                  LDA #0
                  STA lx1
                  LDA #1079
                  STA ly1                      ;Draw Line!

                  LDA #1919                    ;from bottom right to top right
                  STA lx1
                  LDA #0
                  STA ly1                      ;Draw line!

;----Plot 4 Characters. Purpose: Test Read/Modify/Write on register Att.........

                  LDA #%0000000000000000       ;setup pixel color for character
                  STA color                    ;plotting
                  LDA #%1111111111111111
                  STA bcolor

                  LDA #$21
                  ORA #%0000000100000000        ;set bit for C-64 font
                  STA Att

                  LDA #1
                  STA cX
                  STA cY                        ;!Plot Char 'A'. top left
                  INC Att
                  LDA #1079-8-1
                  STA cY
                  INC Att                       ;!Plot Char 'B'. bottom left
                  LDA #1919-8-1
                  STA cX
                  LDA #0                        ;!Plot Char 'C'. top right
                  STA cY
                  INC Att
                  LDA #1079-8-1
                  STA cY                        ;!Plot Char 'D'. bottom right

;----Plot Character String. Purpose: Show all available Characters & Fonts------

                  LDX #10
                  STX cX
                  LDY #200
                  LDWi $0000                  ;LDW #0

cont_plot         LDAaw CHARSTRING            ;LDA CHARSTRING,W
                  CMP #$0D
                  BEQ JOB
                  SEC
                  SBC #$0020                ;make ASCII compatible
                  ORA #%0000000100000000    ;set bit for C-64 font
                  STA Att

                  plot_string

                  INW
                  BNE cont_plot

JOB               LDA #%1111111111111111
                  STA color
                  LDA #%1111100000000000
                  STA bcolor

                  LDX #10
                  STX cX
                  LDY #209
                  LDWi $0000                  ;LDW #0

cont_plot2        LDAaw CHARSTRING            ;LDA CHARSTRING,W
                  CMP #$0D
                  BEQ JOC
                  SEC
                  SBC #$0020                ;make ASCII compatible
                  ORA #%0000000000000000    ;clear bit for DOS font
                  STA Att

                  plot_string

                  INW
                  JMP cont_plot2

CHARSTRING        .BYTE "ABCDEFGHIJKLMNOPQRSTUVWXYZ abcdefghijklmnopqrstuvwxyz 0123456789 !@#$%^&*()_+-=[]{}\|;',./<>?", $0D

;----Copy/Paste. Purpose: Test hardware copy/paste function---------------------

JOC               LDA #100
                  STA bXlen                  ;length of horizontal copy/paste
                  LDA #10
                  STA bYlen                  ;length of vertical copy/paste
                  LDA #0
                  STA bXc                    ;copy start X coordinate
                  LDA #200
                  STA bYc                    ;copy start Y coordinate
                  LDA #900
                  STA bXp                    ;paste start X coordinate
                  LDA #200
                  STA bYp                    ;BLIT! paste start Y coordinate

;----Read color of pixel. Purpose: Read color of a pixel and use value for Fill-

                  LDA #%000000000011111      ;blue pixel
                  STA color

                  LDA #60
                  STA Xp
                  STA Yp                     ;Plot!

                  LDA #60
                  STA Xr
                  STA Yr                     ;Read!

                  LDA colordata
                  STA color                  ;

                  LDA #32
                  STA fXlen
                  LDA #32
                  STA fYlen
                  LDA #150
                  STA fXs
                  LDA #100
                  STA fYs                   ;Fill rectangle with read color

;----Plot Line. Purpose: Test Line Drawing Max Range----------------------------

                  LDA #%1111100000000000    ;red
                  STA color

                  LDA #0
                  STA lx0
                  STA ly0
                  LDA #1919
                  STA lx1
                  LDA #1079
                  STA ly1               ;draw line from top left to bottom right

geck              JMP geck              ;end

[ElEctric_EyE]

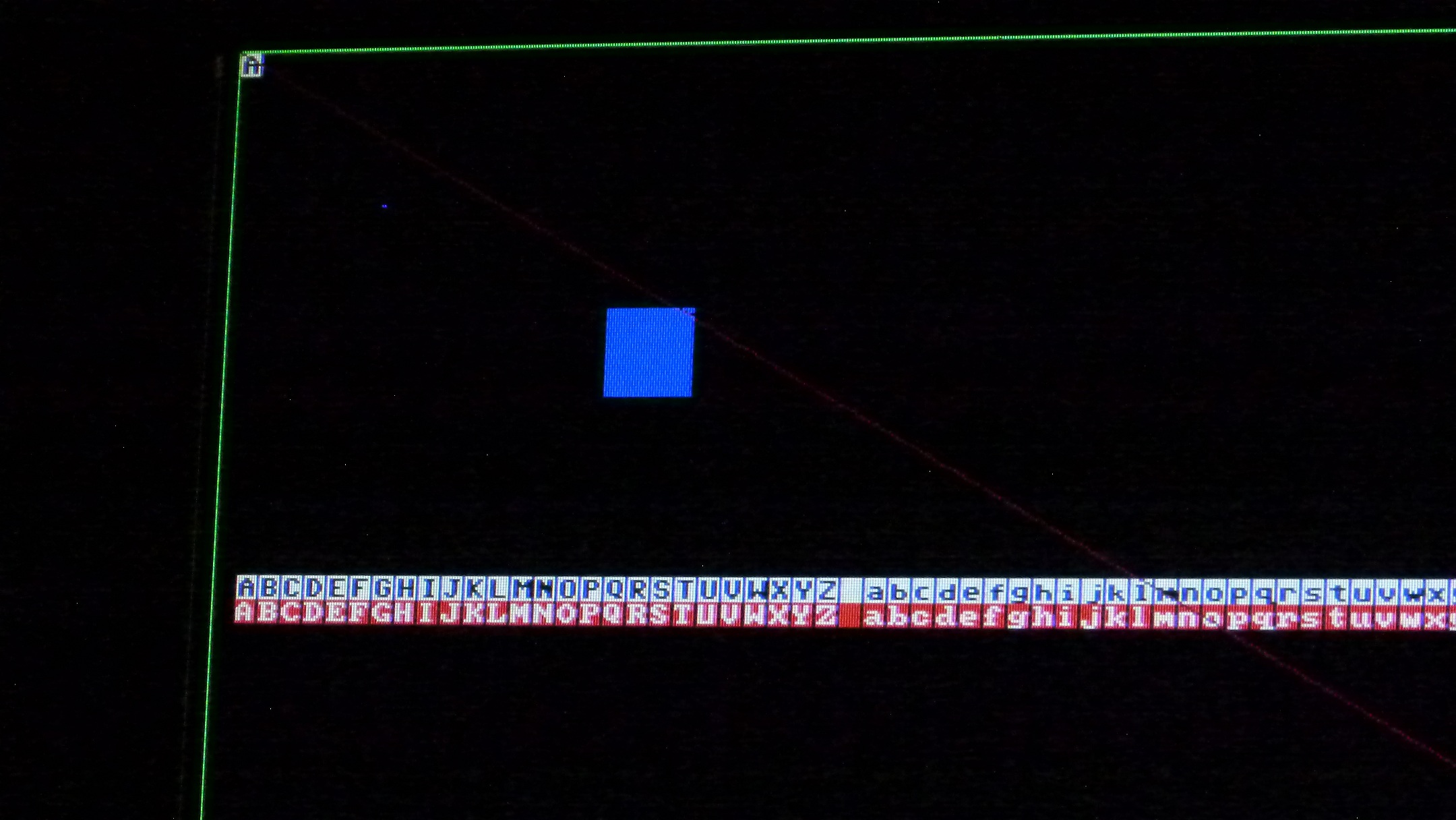

Not so good with the camera! Pixel rate is 150MHz. Monitor expects 148.5MHz for 1920x1080. Could explain apparent ghosting of pixels? I will test..

[ElEctric_EyE]

Limited fun with LUT's:

Code: Select all

;----Generate sine wave from 10-bit LUT. Add pixel, phase and BRAM offsets.-----
;----Draw lines from the center and trace the sinewave.-------------------------
;----Display xfreq =  1.-------------------------------

                  LDA #%1111111111111111 ;white pixels
                  STA color

                  LDA #0                 ;[0-15] 1K BRAMs
                  STA Xblock
                  STA Yblock             ;(not used here)

                  LDA #0
                  STA Xoffset
                  LDA #0
                  STA Yoffset            ;plot at top right

                  LDA #1
                  STA xfreq
                  LDA #1
                  STA yfreq              ;1 is minimum for frequency

                  LDA #0
                  STA Xphase             ;sin
                  LDA #256               ;256/1024= 1/4 out of phase for circle
                                         ;generation using (x(sin),y(cos))
                  STA Yphase             ;Generate 2xLUTs! cos (not used here)

                  LDX #0                 ;draw a line from the center of the
                                         ;sinewave to the sinewave Y coordinates.
                  LDA #1024/2            ;
                  STA lx0                ;
                  LDA #1024/4            ;
                  STA ly0                ;from the center
liner             TXA
                  STA lx1

                  LDA scratchx1,x        ;read sin data from BRAM pointer Xblock #0

                  STA ly1                ;PLOT line!

NC                INX
                  CPX #1024              ;
                  BNE liner

grock             JMP grock

[ElEctric_EyE]

Code: Select all

;----Display xfreq =  5.-------------------------------

[ElEctric_EyE]

Ok, so I think this is going to be the final test. I could've pushed further for 3D stuff, especially with 3 boards which seem to work flawlessly but I've been reading of some new IC's which has advanced some and I want to put my hands on it and integrate it into my controller board.

Controller board next, or new PVB design? I'm was torn but I think the decision has been made. There is some angst because either design will be designed around a BGA package.

Logic tells me design a new PVB around a larger BGA Spartan 6 with 2 SyncRAMs. A new design, but I know what to expect from these RAMs. Delay will be at least 4 months.
Logic also tells me stick with the boards that are now functioning and design the controller board around the larger BGA Spartan 6. I think this is the way I will go, this will also take about 4 months, but the PVBs are already in place Ready, Willing and Able to do my bidding.


This last test I'm happy with, it's nice and fast. It simulates an oscilloscope by a sweep from left to right using the hardware accelerator PLOT! during HSYNC and a rectangle FILL! during VSYNC to clear the waveform when it reaches the end of screen. I'll post a video soon. Here's the software:

Code: Select all

;----simulate oscilloscope------------------------------------------------------

                  LDA #%0000000000111111
                  STA TEMP                ;dynamic range of signal

                  LDA #1080/2
                  STA TEMP2               ; position of scope trace, close to middle of the screen

bg                LDA #%0000011111100000  ;green pixels
                  STA color

                  LDX #0                  ; x position start
                  PHX                     ; push for the value of zero, needed for a fill

loop              STX Xp                  ; set X value for PLOT
                  LDA rng                 ; get 16-bit number from PRNG
                  AND TEMP
                  CLC
                  ADC TEMP2               ;set PLOT for middle of screen

                  BCF0C $FFFE             ;Branch if Control Flag 0 is Clear (0), CF0 is HSYNC input, so branch to itself until hsync = 1, a non display period

                  STA Yp                  ;PLOT!
                  INX
                  CPX #1919
                  BNE loop

                  PLX                     ; get a quick zero from a previous push
                  STX color
                  STX fXs                 ; X position start for FILL

                  LDA #1920
                  STA fXlen               ; horizontal length for FILL
                  LDA TEMP
                  STA fYlen               ; vertical length for FILL
                  LDA TEMP2               ; Y position start for FILL

                  BCF1C $FFFE             ;Branch if Control Flag 1 is Clear (0), CF1 is VSYNC input, so branch to itself and wait until vsync = 1, a non display period

                  STA fYs                 ;FILL! clear previous 1920xTEMP waveform

                  JMP bg
