dwight wrote:
Wires, aluminum or gold, were put down with sonic welders, not soldered.
Well, I was joking, of course.
kakemoms
Posts: 349
Joined: 02 Mar 2016

Re: How did MOS design and photomask technology evolve?

Post by kakemoms »

The ball bonder we have is a general wire soldering machine that uses High voltage to form the ball, then ultrasound to weld it in place. The standard wire is 25mil gold.

Edit: Also from my experience on decapping a 6560, it was bonded with gold wires of approximately the same size.

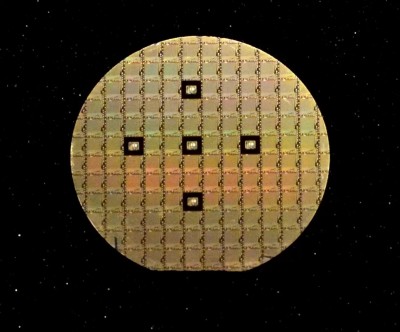

I also found a MOS 2050 SRAM wafer on ebay:
MOS2050 wafer
MOS2050 wafer
Too expensive for me, but the seller claims that its a 2inch wafer from 1970.
kakemoms
Posts: 349
Joined: 02 Mar 2016

Re: How did MOS design and photomask technology evolve?

Post by kakemoms »

I have also located full wafers of 6502, 6510 and 6561. I am waiting for details about size and revision. They are all very expensive.
