Could you post your clock sources schematics, i only know how to rig a 4060 as a crystal oscillator, so i would like something that can actually run faster than 4MHz...

A couple of old but good ap. notes from Fairchild:
HCMOS crystal oscillators: http://www.fairchildsemi.com/an/AN/AN-340.pdf
CMOS oscillators: http://www.fairchildsemi.com/an/AN/AN-118.pdf

It's often most productive however to just use one of the off-the-shelf oscillator cans that take the space of an 8- or 14-pin DIP. This will make sure the oscillator will always work correctly for the whole voltage and temperature range, and it's easy to change.

I made this last year. It works well, except the 74S124 uses some current.
Might be a little more money, but it's better then buying multiple crystals/cans.

I would love to do that, if just there were any to buy... They don't really sell them in electronic stores here where am I, and also are kinda rare on ebay...

So i am left whit crystals self made oscillators...

And thanks for the schematics...

One more question, will it work if i use a 74LS01 or other 74LS as an inverter?

TTL Chips (74LS, etc) need a different circuit to CMOS gates.
The one I use is as follows


This has worked reliabally with crystals from 1MHz to 18MHz using a 74LS04 or 74S04 device.

_________________
Shift to the left,
Shift to the right,
Mask in, Mask Out,
BYTE! BYTE! BYTE!

Thanks!

In trying to figure out what some obviously erroneous oscillator data in a PIC microcontroller data sheet should have been (yes, there are other companies besides WDC that have errors in their data sheets), I came across this page that links some more ap. notes on crystal oscillator design near the top: http://www.microchip.com/forums/m49934.aspx

_________________
http://WilsonMinesCo.com/ lots of 6502 resources

_________________
x86? We ain't got no x86. We don't need no stinking x86!

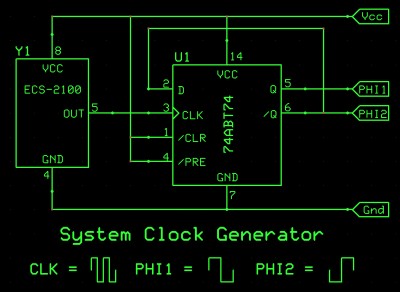

Phi1 and Phi2 shown on the schematic are not the same as the one generated by the 6502, since the 6502 splits the clock on his own.
In my new cpu board I use a 74HC393 counter to get multiple clocks(I have rotary switch for selecting clocks).

_________________
x86? We ain't got no x86. We don't need no stinking x86!

What about making a more advanced clock source with a custom clock divider, so it can divide by 2,3,4,5, etc... Maybe a fast oscillator with a ring counter could be used.
Also software clock settings would be nice.

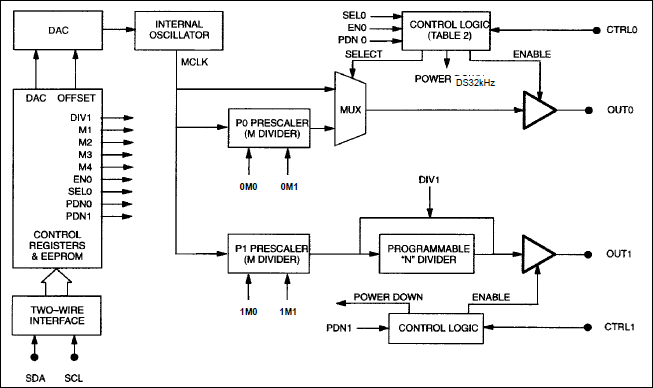

That sounds more or less like the Maxim/Dallas DS1077 and the DS1085, both of which work at 5V and need no external components. They don't have crystal accuracy, but about 1% error which is good enough for RS-232, and the frequency can be programmed via I²C, from 8.1kHz to 133MHz.

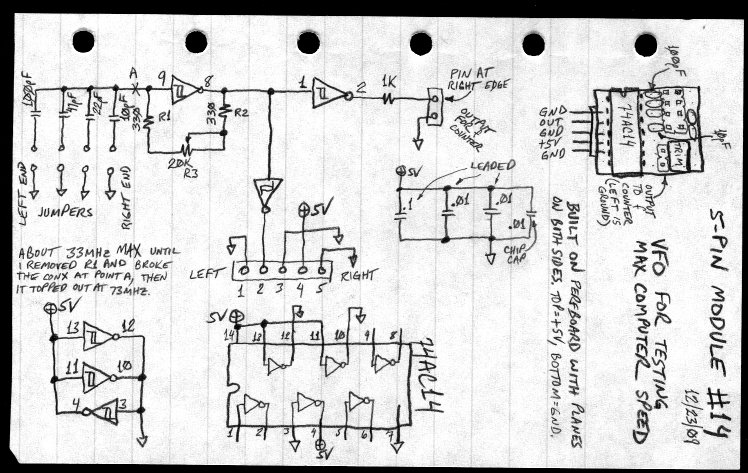

If accuracy is not important at all and you just want to see how fast you can run it up before the computer starts having problems, you can make a relaxation oscillator whose frequency varies with a pot, like so:

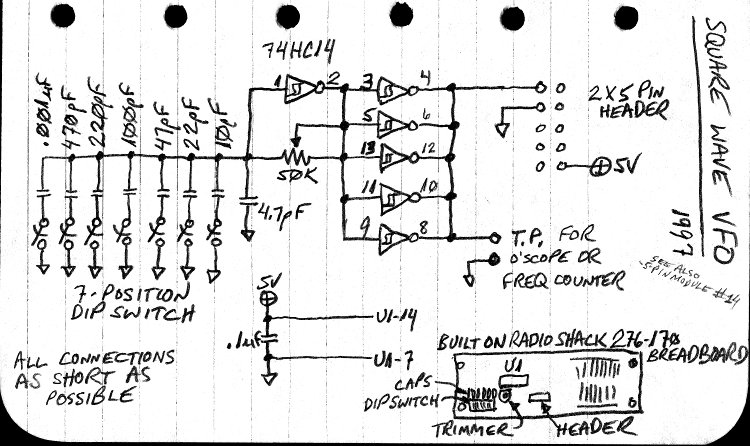

That one goes to 73MHz. Below is an earlier one I did which is slower:
