BigEd

Post subject:

Posted: Thu Sep 16, 2010 9:49 pm

Joined: Thu Dec 11, 2008 1:28 pm
Posts: 10799
Location: England

BigEd wrote:

... interested in the 6800, because I'd like to see what similarities and differences exist ...

And the answer is...

From this patent: (US3987418A, now found here)

Attachment:

File comment: 6800 annotated chip floorplan

6800-US3987418-1.png [ 40.43 KiB | Viewed 3092 times ]

which compares to the 6502 (as seen at visual6502):

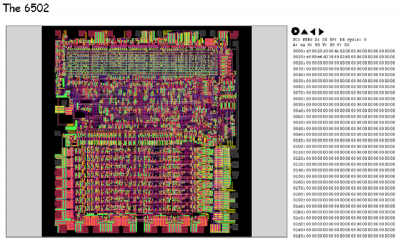

Attachment:

File comment: screenshot of visual6502 (early version)

visual6502-screenshot.png [ 955.8 KiB | Viewed 122 times ]

...much less than I expected! I'm shocked!

Last edited by BigEd on Sun Dec 24, 2023 2:34 pm, edited 4 times in total.

Top

HiassofT

Post subject:

Posted: Thu Sep 16, 2010 10:51 pm

Joined: Thu Sep 02, 2010 12:34 am
Posts: 36
Location: Salzburg, Austria

BigEd wrote:

... interested in the 6800, because I'd like to see what similarities and differences exist ...

...much less than I expected! I'm shocked!

Hey, there's a very big difference! As we all can see from your pics, the 6800 was only black&white whereas the 6502 had plenty of colors :-)

gd&r, Hias

Top

kc5tja

Post subject:

Posted: Fri Sep 17, 2010 2:08 am

Joined: Sat Jan 04, 2003 10:03 pm
Posts: 1706

HAH, looks like Motorola was right after all. But, I'm still glad the 6502 won over the 6800.

Top

ElEctric_EyE

Post subject:

Posted: Fri Sep 17, 2010 2:18 am

Joined: Mon Mar 02, 2009 7:27 pm
Posts: 3258
Location: NC, USA

What are the I5x pullouts from the die?

_________________
65Org16:https://github.com/ElEctric-EyE/verilog-6502

Top

BigEd

Post subject:

Posted: Fri Sep 17, 2010 5:37 am

Joined: Thu Dec 11, 2008 1:28 pm
Posts: 10799
Location: England

ElEctric_EyE wrote:

What are the I5x pullouts from the die?

These are reference numbers (in the 150's) used in the text of the patent in the "Description of the invention" section.

I notice the patent text refers to many other patent applications submitted in the same timeframe, including on interrupts and on instruction look-ahead. One of the circuits I intend to investigate in the 6502 simulator is the lookahead - it looks like the databus is inspected and some pre-decode signals derived during the fetch cycle. If that's right, then it's stealing some nanoseconds from the external access time. It's possible this trick is inherited from the 6800.

I do have more named signals available than the released version of the simulator has - I imagine there'll be an update before long. I don't yet have the identities of the PLA outputs or the datapath control inputs, but I'll get them. We'll need a way to display or tabulate changes on all these signals too - presently I'm doing that by adhoc modifications to the javascript (pasted into the console at runtime)

Top

BigEd

Post subject:

Posted: Sat Sep 18, 2010 9:00 pm

Joined: Thu Dec 11, 2008 1:28 pm
Posts: 10799
Location: England

Here's a curiousity - this 65816 programming book has a die photo on the cover and it looks like a stretch-limo version of 6502. The datapath appears to be double length not double width:

Attachment:

File comment: 65816 die photo from book cover

658162.jpg [ 12.83 KiB | Viewed 3354 times ]

Edit: replace lost imageshack-hosted image with attachment

Last edited by BigEd on Fri Dec 13, 2013 12:37 pm, edited 1 time in total.

Top

kc5tja

Post subject:

Posted: Sat Sep 18, 2010 9:13 pm

Joined: Sat Jan 04, 2003 10:03 pm
Posts: 1706

I think we pretty much knew that from its instruction timings. :-)

Top

BigEd

Post subject: update: smaller, faster, can load and run programs

Posted: Thu Oct 07, 2010 9:32 pm

Joined: Thu Dec 11, 2008 1:28 pm
Posts: 10799
Location: England

The visual simulator just got faster and smaller (must be Moore's law)

There's also now a more low-level advanced interface, and by passing an appropriate URL you can load and run a short test program:
http://visual6502.org/JSSim/expert.html ... =60&r=0020

That particular program answers the riddle:
Q. When is the stack pointer not the stack pointer?

In this 'graphics=false' mode you can use the 'Show chip layout' button to explore the chip layout, where each conductor is coloured according to the logic level as the simulation progresses. '>' to zoom in, click and drag to pan.

Thanks to Greg, Barry and Brian for many of the new features.

Cheers
Ed

Edit: update link from pre-release to released area

Last edited by BigEd on Wed Nov 10, 2010 8:35 pm, edited 1 time in total.

Top

RichTW

Post subject:

Posted: Fri Oct 08, 2010 7:14 am

Joined: Wed Oct 06, 2010 9:05 am
Posts: 95
Location: Palma, Spain

My first post here! Thanks a lot to the whole team for such an astounding piece of work; it's fascinating to see what's going on.

That's a curious thing that SP is trashed while executing a JSR (actually, I noticed this yesterday when I was playing about with 'expert mode', and thought it was some kind of bug in the frontend!). I wonder why it does that?

I have a question - what is the 'tcstate' column? First of all, I guessed it was the timer state (as sent to the PLA), but given that it barely changes (for example, during the JSR) and would be better represented as a series of bits, I guess not.

Top

BigEd

Post subject:

Posted: Fri Oct 08, 2010 10:02 am

Joined: Thu Dec 11, 2008 1:28 pm
Posts: 10799
Location: England

Welcome!

Note that SP isn't trashed, it's borrowed for the LSB while the PC is written to the stack. During those writes, the value of SP must be decremented, so it spends a few cycles in the ALU - leaving the SP register free as a temporary!

The tcstate presentation is a bug, I'm afraid. It should show values like 011111, 101111 and so on, but I added the bits instead of concatenating them. There's a fix in the works!

(If you feel intrepid, you can find your browser's Javascript Console, get it to print out busToString, and adjust it to read

Code:

function busToString(busname){
   // takes a signal name or prefix
   // returns an appropriate string representation
   if(busname=='cycle')
      return cycle>>1;
   if(busname=='pc')
      return busToHex('pch') + busToHex('pcl');
   if(busname=='p')
      return readPstring();
   if(busname=='tcstate')
      return ['clock1','clock2','t2','t3','t4','t5'].map(busToHex).join("");
   return busToHex(busname);
}

which is code you can find on github
)

You should then see something like this tabulation:

Code:

cycle  ab    db  rw  sync  pc    a   x   y   s   p         ir  tcstate  pd  adl  adh  sb  alu  alucin  alua  alub  alucout  aluvout  dasb
0      0000  a9  1   1     0000  aa  00  00  fd  nv-bdIZc  00  011111   ff  00   00   ff  00   0       ff    00    0        0        ff
0      0000  a9  1   1     0000  aa  00  00  fd  nv-bdIZc  00  011111   56  01   00   ff  ff   0       ff    00    0        0        ff
1      0001  00  1   0     0001  aa  00  00  fd  nv-bdIZc  a9  100111   56  01   00   ff  ff   0       ff    ff    0        0        ff
1      0001  00  1   0     0001  aa  00  00  fd  nv-bdIZc  a9  100111   ff  02   00   ff  fe   0       ff    ff    1        0        ff
2      0002  20  1   1     0002  00  00  00  fd  nv-bdIZc  a9  011111   ff  02   00   00  fe   0       00    00    1        0        00
2      0002  20  1   1     0002  00  00  00  fd  nv-bdIZc  a9  011111   df  03   00   00  00   0       00    00    0        0        00
3      0003  10  1   0     0003  00  00  00  fd  nv-bdIZc  20  110111   df  03   00   00  00   0       00    00    0        0        00
3      0003  10  1   0     0003  00  00  00  fd  nv-bdIZc  20  110111   ef  fd   01   ff  00   0       00    00    0        0        ff
4      01fd  00  1   0     0004  00  00  00  10  nv-bdIZc  20  111011   ef  fd   01   10  00   0       00    fd    0        0        10
4      01fd  00  1   0     0004  00  00  00  10  nv-bdIZc  20  111011   ff  fd   ff   ff  fd   0       00    fd    0        0        ff
5      01fd  00  0   0     0004  00  00  00  10  nv-bdIZc  20  111101   ff  fd   ff   ff  fd   0       ff    fd    0        0        ff
5      01fd  00  0   0     0004  00  00  00  10  nv-bdIZc  20  111101   ff  fc   ff   ff  fc   0       ff    fd    1        0        ff
6      01fc  00  0   0     0004  00  00  00  10  nv-bdIZc  20  111110   ff  fc   ff   ff  fc   0       ff    fc    1        0        ff
6      01fc  04  0   0     0004  00  00  00  10  nv-bdIZc  20  111110   fb  04   00   fb  fb   0       ff    fc    1        0        fb
7      0004  00  1   0     0004  00  00  00  10  nv-bdIZc  20  101111   fb  04   00   fb  fb   0       fb    00    1        0        fb
7      0004  00  1   0     0004  00  00  00  10  nv-bdIZc  20  101111   ff  10   ff   fb  fb   0       fb    00    0        0        fb
8      0010  e8  1   1     0010  00  00  00  fb  nv-bdIZc  20  011111   ff  10   00   fb  fb   0       00    00    0        0        fb
8      0010  e8  1   1     0010  00  00  00  fb  nv-bdIZc  20  011111   17  11   00   00  00   0       00    00    0        0        00

Cheers!
Ed

edit: SP is of course decremented, not incremented, for a push

Last edited by BigEd on Fri Oct 08, 2010 11:40 am, edited 1 time in total.

Top

RichTW

Post subject:

Posted: Fri Oct 08, 2010 11:15 am

Joined: Wed Oct 06, 2010 9:05 am
Posts: 95
Location: Palma, Spain

BigEd wrote:

Note that SP isn't trashed, it's borrowed for the LSB while the PC is written to the stack. During those writes, the value of SP must be incremented, so it spends a few cycles in the ALU - leaving the SP register free as a temporary!

Ah, of course - that makes perfect sense! It's very cleverly and compactly designed.

BigEd wrote:

The tcstate presentation is a bug, I'm afraid. It should show values like 011111, 101111 and so on, but I added the bits instead of concatenating them. There's a fix in the works!

That's great! I'll hang on for the next release

I'm intrigued by the tcstate - it doesn't seem to be quite as straightforward as it was originally made out to be.

Top

BigEd

Post subject:

Posted: Fri Oct 08, 2010 11:22 am

Joined: Thu Dec 11, 2008 1:28 pm
Posts: 10799
Location: England

RichTW wrote:

BigEd wrote:

The tcstate presentation is a bug, I'm afraid. It should show values like 011111, 101111 and so on, but I added the bits instead of concatenating them. There's a fix in the works!

That's great! I'll hang on for the next release :) I'm intrigued by the tcstate - it doesn't seem to be quite as straightforward as it was originally made out to be.

Indeed, it's an interesting area. The Rockwell docs describe a simple counter, but this MOS chip certainly doesn't have that - and I think this might be universal at least up to 65CE02. What we really have is a bitvector, which drives some of the wordlines of the PLA. The last 4 of these do seem to be a shift register, but the first two are more free than that. That's why I wanted to present the set as a bitvector.

Note also that in the Sync cycle, the IR still holds the previous instruction and the machine is still acting on that. It's a simplification (at best) to think of this as T0 of the instruction being fetched. From the point of view of the programmer's model it's good enough, but if you insist on thinking that way down at the microarchitectural level, you might conclude that the 6502 can't be built!

Cheers
Ed

Edit: spello

Last edited by BigEd on Sat Apr 16, 2011 4:57 pm, edited 1 time in total.

Top

ElEctric_EyE

Post subject:

Posted: Mon Oct 18, 2010 1:50 pm

Joined: Mon Mar 02, 2009 7:27 pm
Posts: 3258
Location: NC, USA

Big Ed, does the visual6502 team plan to release any of the netlists of the devices being preserved?

_________________
65Org16:https://github.com/ElEctric-EyE/verilog-6502

Top

BigEd

Post subject:

Posted: Mon Oct 18, 2010 2:11 pm

Joined: Thu Dec 11, 2008 1:28 pm
Posts: 10799
Location: England

yes, at least in the sense that the netlists already get downloaded and used by your browser when you visit the site!

Now, what you actually download are javascript files, with some comments, which between them tell you which transistors are connected to which nets, and gives you some names for some of those nets - including the pads of course.

What you don't get is a netlist in a recognisable form, like SPICE or Verilog. Also, you're getting transistors, not logic gates. Some of the transistors form easily recognisable logic gates, but some don't, because there are some non-obvious but efficient ways of building shared busses and latch structures.

If there were a good standard format for transistor level netlists someone could probably rustle up a conversion fairly easily. Irsim seems like the right sort of (free) simulator, but I don't know anything about the netlist formats it supports.

What did you have in mind? (Those transistor-level tricks make it tricky to see how to port to an FPGA.)

Top

ElEctric_EyE

Post subject:

Posted: Mon Oct 18, 2010 3:08 pm

Joined: Mon Mar 02, 2009 7:27 pm
Posts: 3258
Location: NC, USA

Yes, I was thinking of implementing the netlist file as a symbol representing the IC. Heh, I knew the idea sounded to easy to work.

-EyE

_________________
65Org16:https://github.com/ElEctric-EyE/verilog-6502

Top
