Breadboard Buddy BB-ZIF-32 Adapter PCB

For discussing the 65xx hardware itself or electronics projects.
Post Reply
User avatar
Michael
Posts: 633
Joined: 13 Feb 2013
Location: Michigan, USA

Breadboard Buddy BB-ZIF-32 Adapter PCB

Post by Michael »

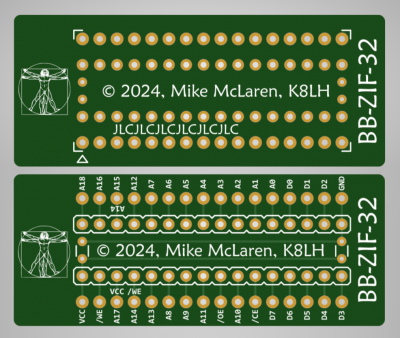

Member visrealm (Troy) posted a nifty ZIF-28 breadboard adapter PCB design over on Ben Eater's Reddit feed awhile back and I couldn't resist making a 32-pin version. I managed a flush fit between the PCB and ZIF socket by cutting the header pins flush with the PCB, applying liquid flux, and filling the plated-through holes with solder.

Cheerful regards, Mike, K8LH
Gerber_BB_ZIF_32.zip
(89.01 KiB) Downloaded 507 times
ZIF-32 #1.png
Attachments

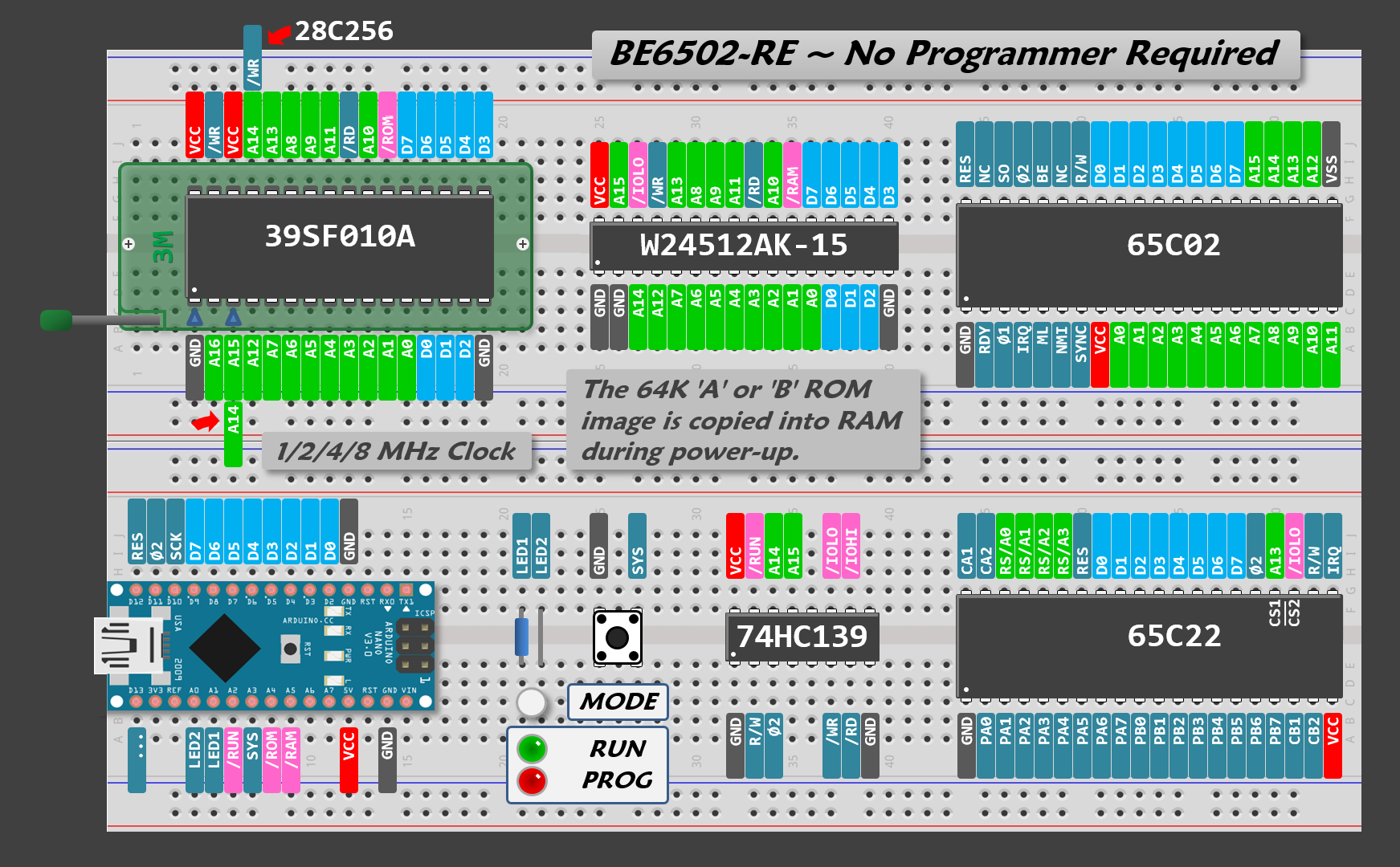

BE6502-RE on BB ZIF.png

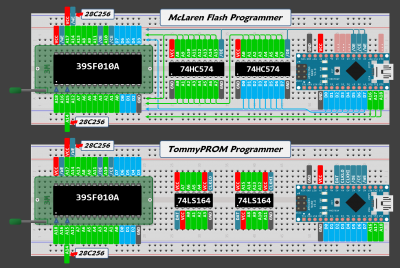

BB ZIF-32 Adapter Demo.png
