PostPosted: Tue Oct 17, 2023 8:01 pm
Offline
User avatar

Joined: Fri Aug 03, 2018 8:52 am
Posts: 745
Location: Germany
i usually just take a screenshot of KiCad's PCB editor, wouldn't that be functionally the same?


Top
 Profile
Reply with quote
PostPosted: Tue Oct 17, 2023 8:18 pm
Offline
User avatar

Joined: Fri Dec 11, 2009 3:50 pm
Posts: 3346
Location: Ontario, Canada
Nice work. George! And a good, comprehensive writeup, too.

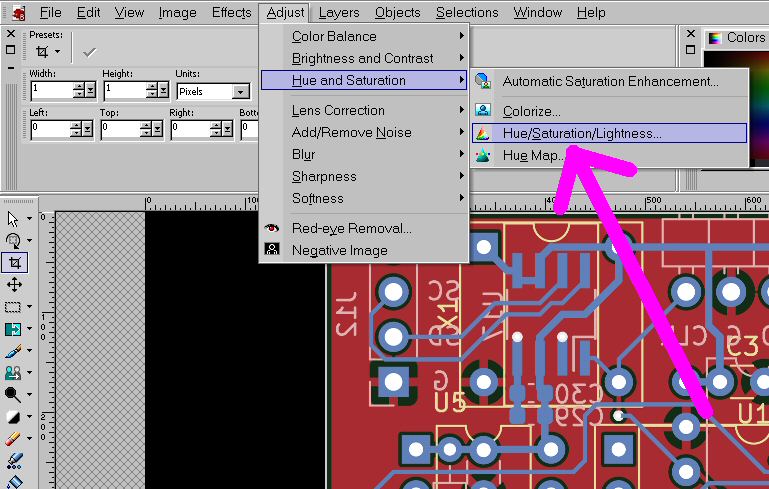

As for the issue of rendering in monochrome, if you were able to get the (color) images into Gimp then the solution was close at hand. Myself, I use Paint Shop Pro, but any decent image-editing software will let you adjust the color saturation up or down. And if you bring it down to zero, the result is monochrome! :wink:

-- Jeff
Attachment:
saturation.jpg [ 87.65 KiB | Viewed 16302 times ]


Attachments:

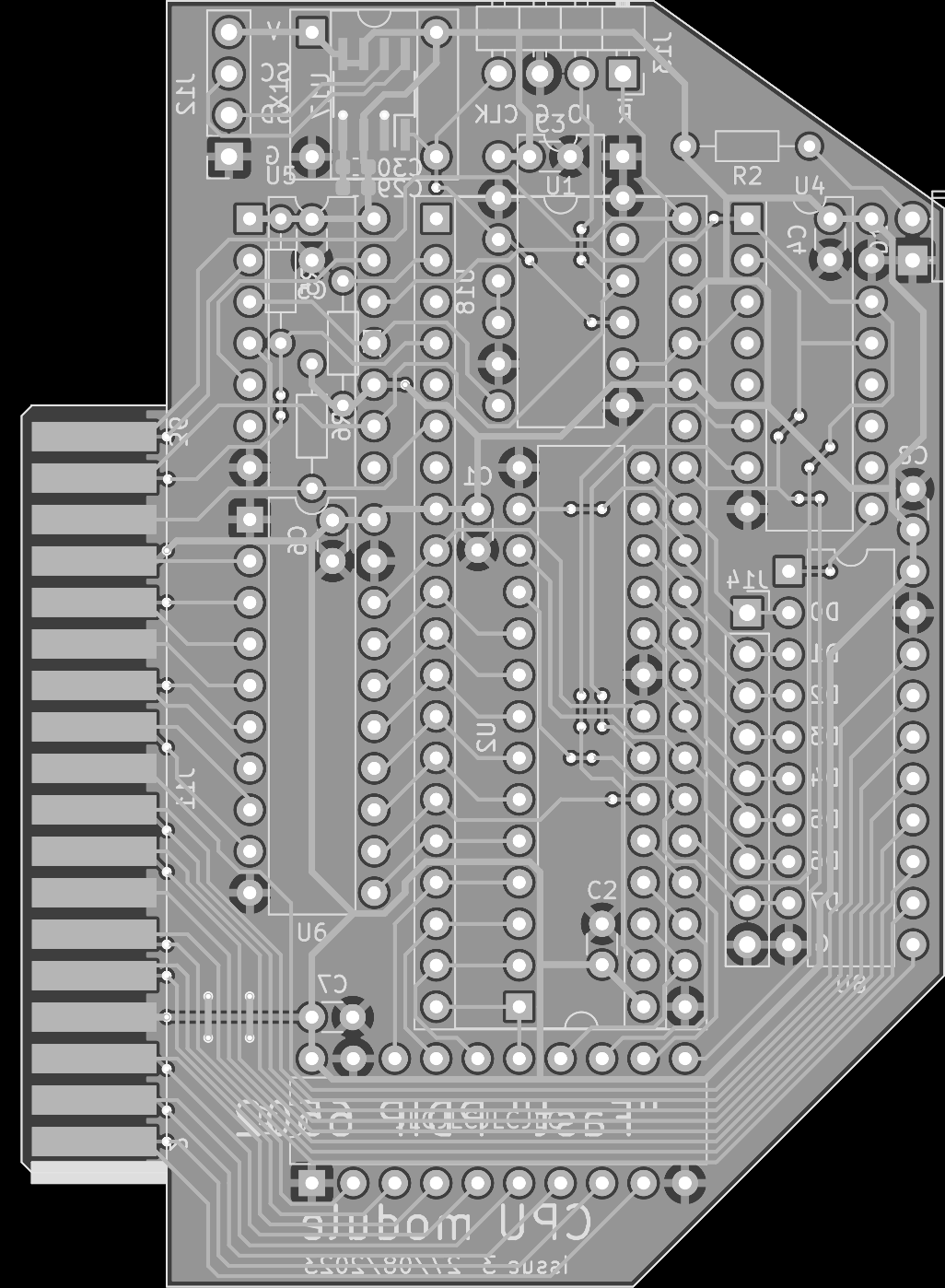

6502fast3cpu-iss3-pcb momo.png
6502fast3cpu-iss3-pcb momo.png [ 323.28 KiB | Viewed 16302 times ]

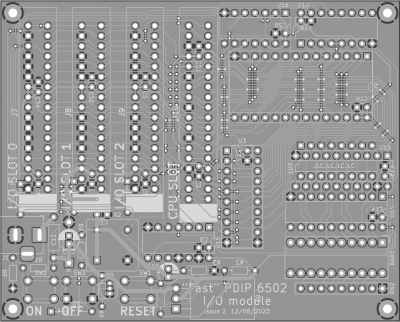

6502fast3io-iss2-pcb mono.png
6502fast3io-iss2-pcb mono.png [ 536.94 KiB | Viewed 16302 times ]

_________________
In 1988 my 65C02 got six new registers and 44 new full-speed instructions!
https://laughtonelectronics.com/Arcana/ ... mmary.html
Top
 Profile
Reply with quote
PostPosted: Tue Oct 17, 2023 10:39 pm
Offline

Joined: Fri Jul 09, 2021 10:12 pm
Posts: 741
Thanks Jeff - yes I can desaturate it, but I just find the result not very clear, it's not so easy to tell the difference between the layers, so I left the colours in.

After switching to a monochrome palette in the schematic editor though, just for exporting images, I quickly became used to it and started using it all the time - I wouldn't want to go back to using colours there!


Top
 Profile
Reply with quote
PostPosted: Wed Oct 18, 2023 2:00 am
Offline
User avatar

Joined: Fri Aug 30, 2002 1:09 am
Posts: 8428
Location: Southern California
The monochrome thing, black lines against a white background, is good for schematics, but I'm sure colors could be chosen in the PCB CAD or the gerber-viewer software that would be easier for colorblind people to differentiate.  Red-green is apparently the most common colorblindness, and now there are glasses that help substantially, apparently by blocking the range of wavelengths that trigger both the cones that are supposed to only sense red and the ones that are supposed to only sense green, so the person doesn't just see kind of a muddy mustard color.  We used to have an engineer, and before that a manager, who were both red-green colorblind, so I tried to give them PCB views that didn't cause problems there.  They were colorful though.  BDD describes his more unusual colorblindness at viewtopic.php?p=88004#p88004 .

_________________
http://WilsonMinesCo.com/ lots of 6502 resources
The "second front page" is http://wilsonminesco.com/links.html .
What's an additional VIA among friends, anyhow?


Top
 Profile
Reply with quote
PostPosted: Wed Oct 18, 2023 2:38 am
Offline

Joined: Fri Jul 09, 2021 10:12 pm
Posts: 741
Yes I came across the need to avoid red vs green being one case, at work. It's interesting that there are glasses that can help somewhat.

We were advised to use red and blue instead, so perhaps that is a fine combination. In fact I just found this simulator where you can upload an image and try out various filters to see how it might be perceived: https://www.color-blindness.com/coblis- ... simulator/ The original red and blue image I posted seems fairly good with this, perhaps that's why these colours are used by default in the software.


Top
 Profile
Reply with quote
PostPosted: Wed Oct 18, 2023 6:56 am
Offline

Joined: Mon Jan 19, 2004 12:49 pm
Posts: 660
Location: Potsdam, DE
Forty years ago, when I first started drawing PCBs with coloured pencils and tracing paper, red and blue were the only options I was given!

No-one ever explained why; particularly as a broadcast engineer in a broadcasting company, 'perfect' colour vision was a job requirement...

Red and blue are the default front and back colours for Kicad, though I also got on well with their old red and green (and I think Eagle used red and green too).

Neil

edit: p.s. when exporting a schematic pdf from Kicad, there's a checkbox to select a monochrome output. I've not found a good way other than screen grabs to export the pcb, though.
