ElEctric_EyE
PostPosted: Mon Dec 29, 2014 8:12 pm
Offline

Joined: Mon Mar 02, 2009 7:27 pm
Posts: 3258
Location: NC, USA

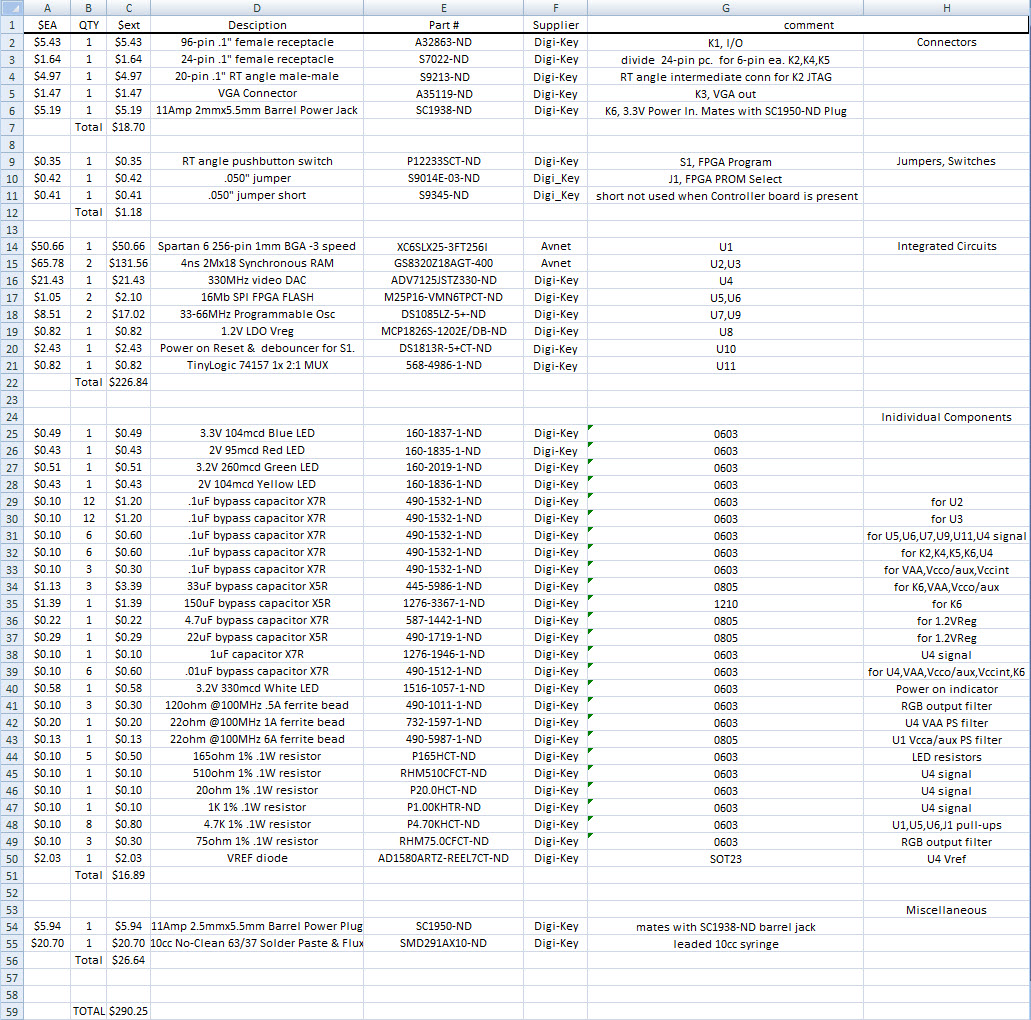

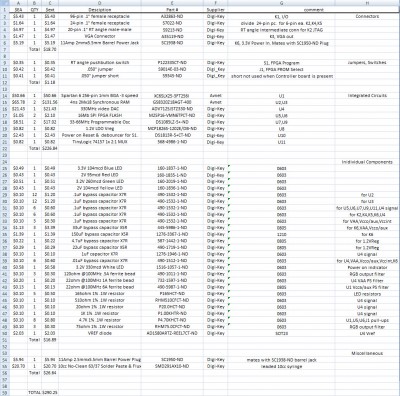

Parts list started. Discrete components have yet to be added!
Was a challenge to find the 330MHz videoDAC part. :D


Attachments:
12-29-2014 2-53-51 PM PVBV2 Parts incomplete.jpg
12-29-2014 2-53-51 PM PVBV2 Parts incomplete.jpg [ 287.74 KiB | Viewed 1070 times ]

_________________
65Org16:https://github.com/ElEctric-EyE/verilog-6502
Top
 Profile
Reply with quote
GARTHWILSON
PostPosted: Mon Dec 29, 2014 8:26 pm
Offline
User avatar

Joined: Fri Aug 30, 2002 1:09 am
Posts: 8432
Location: Southern California
ElEctric_EyE wrote:
Garth, I interpreted your 'jagged' comment to mean diagonal so I tried to come up with a better layout:

I'm not sure what you mean by 'jagged' unless you're referring to the term "chainsaw" which just means there are cuts (regardless of shape) in what otherwise looks like a plane layer, in this case a power plane. As long as this layer doesn't get between your signal traces and the continuous ground plane, you'll be fine. Remember that any given signal trace's return current through the plane tries to run directly under that trace, taking the shape of the trace, but that if there's a cut in the trace, the return current has to take a different path and you end up with what amounts to an inductor or a stub depending on the length and width of the cut, and it degrades signal integrity. Actually, sometimes a cut in the plane, running perpendicular to the trace, is intentionally used to print an antenna on the board, something you don't want in this case. I really have no way of evaluating the effects for the particular application, so, since you're dealing with sub-nanosecond rise times for the fast, hi-res video stuff, I just shoot for next best, which we give the nebulous term "good engineering practice."

_________________
http://WilsonMinesCo.com/ lots of 6502 resources
The "second front page" is http://wilsonminesco.com/links.html .
What's an additional VIA among friends, anyhow?
Top
 Profile
Reply with quote
ElEctric_EyE
PostPosted: Fri Jan 02, 2015 11:22 pm
Offline

Joined: Mon Mar 02, 2009 7:27 pm
Posts: 3258
Location: NC, USA
I've finished the .ucf constraints file which assigns each pin on the FPGA a particular function for ISE to program the FPGA. This bit of work is abit mundane but it forces me to re-check pad-trace-pad IC interconnects. And I found a major problem that existed from early! Read on...
Code:
 # Spartan 6 XC6SLX25 Pin assignments on PVBV2a #  1.2.2015

 # Synchronous Ram #1 Signals #
NET "SRAddr[0]" LOC = PA4 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //VREF
NET "SRAddr[1]" LOC = PA3 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //VREF
NET "SRAddr[2]" LOC = PB3 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //USER I/O
NET "SRAddr[3]" LOC = PA2 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //USER I/O
NET "SRAddr[4]" LOC = PB2 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //USER I/O
NET "SRAddr[5]" LOC = PB1 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //USER I/O
NET "SRAddr[6]" LOC = PC6 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //USER I/O
NET "SRAddr[7]" LOC = PD6 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //USER I/O
NET "SRAddr[8]" LOC = PE7 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //P_GCLK
NET "SRAddr[9]" LOC = PD8 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //USER I/O
NET "SRAddr[10]" LOC = PC8 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //VREF
NET "SRAddr[11]" LOC = PE8 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //N_GCLK
NET "SRAddr[12]" LOC = PE10 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //P_GCLK
NET "SRAddr[13]" LOC = PA8 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //USER I/O
NET "SRAddr[14]" LOC = PB8 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //USER I/O
NET "SRAddr[15]" LOC = PA7 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //USER I/O
NET "SRAddr[16]" LOC = PC7 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //USER I/O
NET "SRAddr[17]" LOC = PA6 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //USER I/O
NET "SRAddr[18]" LOC = PB6 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //USER I/O
NET "SRAddr[19]" LOC = PA5 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //USER I/O
NET "SRAddr[20]" LOC = PB5 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //USER I/O
NET "SRD[0]" LOC = PC1 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //USER I/O
NET "SRD[1]" LOC = PC2 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //USER I/O
NET "SRD[2]" LOC = PD1 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //USER I/O
NET "SRD[3]" LOC = PD3 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //USER I/O
NET "SRD[4]" LOC = PE1 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //USER I/O
NET "SRD[5]" LOC = PE2 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //USER I/O
NET "SRD[6]" LOC = PC5 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //USER I/O
NET "SRD[7]" LOC = PE6 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //USER I/O
NET "SRD[8]" LOC = PD12 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //USER I/O
NET "SRD[9]" LOC = PC9 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //P_GCLK
NET "SRD[10]" LOC = PA9 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //N_GCLK
NET "SRD[11]" LOC = PB10 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //P_GCLK
NET "SRD[12]" LOC = PA10 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //N_GCLK
NET "SRD[13]" LOC = PB12 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //USER I/O
NET "SRD[14]" LOC = PA11 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //USER I/O
NET "SRD[15]" LOC = PC11 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //P_GCLK
NET "SRD[16]" LOC = PC3 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //USER I/O
NET "SRD[17]" LOC = PE11 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //USER I/O
NET "SRWEn" LOC = PE7 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //P_GCLK
NET "SRCLK" LOC = PF1 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //N_GCLK

 # Synchronous Ram #2 Signals #
NET "SRAddr[0]" LOC = PP4 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //USER I/O
NET "SRAddr[1]" LOC = PT4 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //USER I/O
NET "SRAddr[2]" LOC = PR5 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //D0-D15
NET "SRAddr[3]" LOC = PT5 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //RDWR_B_VREF
NET "SRAddr[4]" LOC = PN4 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //USER I/O
NET "SRAddr[5]" LOC = PP5 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //D0-D15
NET "SRAddr[6]" LOC = PF3 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //USER I/O
NET "SRAddr[7]" LOC = PE3 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //USER I/O
NET "SRAddr[8]" LOC = PE4 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //USER I/O
NET "SRAddr[9]" LOC = PH1 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //USER I/O
NET "SRAddr[10]" LOC = PG3 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //USER I/O
NET "SRAddr[11]" LOC = PG1 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //USER I/O
NET "SRAddr[12]" LOC = PD5 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //USER I/O
NET "SRAddr[13]" LOC = PN1 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //USER I/O
NET "SRAddr[14]" LOC = PN3 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //USER I/O
NET "SRAddr[15]" LOC = PP1 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //USER I/O
NET "SRAddr[16]" LOC = PP2 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //USER I/O
NET "SRAddr[17]" LOC = PR1 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //USER I/O
NET "SRAddr[18]" LOC = PR2 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //USER I/O
NET "SRAddr[19]" LOC = PM3 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //VREF
NET "SRAddr[20]" LOC = PM5 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //USER I/O
NET "SRD[0]" LOC = PM4 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //USER I/O
NET "SRD[1]" LOC = PK6 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //USER I/O
NET "SRD[2]" LOC = PL5 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //USER I/O
NET "SRD[3]" LOC = PK3 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //P_GCLK
NET "SRD[4]" LOC = PK5 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //USER I/O
NET "SRD[5]" LOC = PJ4 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //N_GCLK
NET "SRD[6]" LOC = PH4 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //P_GCLK
NET "SRD[7]" LOC = PF4 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //USER I/O
NET "SRD[8]" LOC = PJ1 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //USER I/O
NET "SRD[9]" LOC = PJ3 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //USER I/O
NET "SRD[10]" LOC = PK1 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //USER I/O
NET "SRD[11]" LOC = PK2 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //USER I/O
NET "SRD[12]" LOC = PL1 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //USER I/O
NET "SRD[13]" LOC = PL3 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //USER I/O
NET "SRD[14]" LOC = PM1 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //USER I/O
NET "SRD[15]" LOC = PM2 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //USER I/O
NET "SRD[16]" LOC = PL4 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //USER I/O
NET "SRD[17]" LOC = PH2 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //USER I/O
NET "SRWEn" LOC = PF5 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //USER I/O
NET "SRCLK" LOC = PF2 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //P_GCLK

  # I2C Signals #
NET "SCL" LOC = PT9 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //USER I/O
NET "SDA" LOC = PR9 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //USER I/O

# RGBin Signals #
NET "Rin[0]" LOC = PK16 | IOSTANDARD = LVCMOS33;  //A0-A25
NET "Rin[1]" LOC = PK14 | IOSTANDARD = LVCMOS33;  //N_GCLK
NET "Rin[2]" LOC = PL16 | IOSTANDARD = LVCMOS33;  //FCS...LDC
NET "Rin[3]" LOC = PM15 | IOSTANDARD = LVCMOS33;  //FCS...LDC
NET "Rin[4]" LOC = PN16 | IOSTANDARD = LVCMOS33;  //A0-A25
NET "Gin[0]" LOC = PP16 | IOSTANDARD = LVCMOS33;  //USER I/O
NET "Gin[1]" LOC = PP15 | IOSTANDARD = LVCMOS33;  //FCS..LDC
NET "Gin[2]" LOC = PR16 | IOSTANDARD = LVCMOS33;  //USER I/O
NET "Gin[3]" LOC = PL13 | IOSTANDARD = LVCMOS33;  //VREF
NET "Gin[4]" LOC = PN14 | IOSTANDARD = LVCMOS33;  //A0-A25
NET "Gin[5]" LOC = PT15 | IOSTANDARD = LVCMOS33;  //USER I/O
NET "Bin[0]" LOC = PR14 | IOSTANDARD = LVCMOS33;  //USER I/O
NET "Bin[1]" LOC = PT13 | IOSTANDARD = LVCMOS33;  //USER I/O
NET "Bin[2]" LOC = PT12 | IOSTANDARD = LVCMOS33;  //USER I/O
NET "Bin[3]" LOC = PP12 | IOSTANDARD = LVCMOS33;  //A0-A25
NET "Bin[4]" LOC = PN9 | IOSTANDARD = LVCMOS33;  //A0-A25
NET "HSYNCin" LOC = PT8 | IOSTANDARD = LVCMOS33 | SLEW = SLOW |DRIVE = 12;  //N_GCLK
NET "VSYNCin" LOC = PR12 | IOSTANDARD = LVCMOS33 | SLEW = SLOW |DRIVE = 12;  //USER I/O
NET "PCLKin" LOC = PH5 | IOSTANDARD = LVCMOS33;  //N_GCLK


# RGBout Signals #
NET "Rout[0]" LOC = PA12 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //VREF
NET "Rout[1]" LOC = PA13 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //USER I/O
NET "Rout[2]" LOC = PC13 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //USER I/O
NET "Rout[3]" LOC = PA14 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //USER I/O
NET "Rout[4]" LOC = PB14 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //USER I/O
NET "Gout[0]" LOC = PB16 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //A0-A25
NET "Gout[1]" LOC = PC16 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //A0-A25
NET "Gout[2]" LOC = PC15 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //A0-A25
NET "Gout[3]" LOC = PD16 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //A0-A25
NET "Gout[4]" LOC = PD14 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //A0-A25
NET "Gout[5]" LOC = PE16 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //A0-A25
NET "Bout[0]" LOC = PE15 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //A0-A25
NET "Bout[1]" LOC = PF16 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //A0-A25
NET "Bout[2]" LOC = PF15 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //A0-A25
NET "Bout[3]" LOC = PG16 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //A0-A25
NET "Bout[4]" LOC = PH14 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //USER I/O
NET "HSYNCout" LOC = PM6 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //USER I/O
NET "VSYNCout" LOC = PR15 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //USER I/O
NET "PCLKout" LOC = PJ16 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //N_GCLK


 # Bi-Directional Communication Interface #
NET "D0" LOC = PL16 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //FCS..LDC
NET "D1" LOC = PM16 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //FCS..LDC
NET "D2" LOC = PN5 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //USER I/O
NET "D3" LOC = PT6 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //USER I/O
NET "D4" LOC = PN6 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //D0-D15
NET "D5" LOC = PP7 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //P_GCLK
NET "D6" LOC = PT7 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //N_GCLK
NET "D7" LOC = PH16 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //A0-A25
NET "CommCLK" LOC = PM7 |IOSTANDARD = LVCMOS33 //N_GCLK
NET "R_W" LOC = PR7 |IOSTANDARD = LVCMOS33 //P_GCLK
NET "PVB1RDY" LOC = PP6 |IOSTANDARD = LVCMOS33;  //USER I/O
NET "PVB1BE" LOC = PP8 |IOSTANDARD = LVCMOS33 |SLEW = SLOW |DRIVE = 12;  //P_GCLK

 # Programmable Clock 1 Input from DS1085L  (Main Osc out 1 hardwired to J12)#

NET "ProCLKin1" LOC = PJ12 |IOSTANDARD = LVCMOS33;  //N_GCLK

 # Programmable Clock 2 Input from DS1085L  (Main Osc out 2 hardwired to J13)#

NET "ProCLKin2" LOC = PJ13 |IOSTANDARD = LVCMOS33;  //N_GCLK

 # Programmable Clock Output from K1 Controller Board #

NET "POSCin" LOC = PM9 |IOSTANDARD = LVCMOS33;  //P_GCLK

_________________
65Org16:https://github.com/ElEctric-EyE/verilog-6502
Top
 Profile
Reply with quote
ElEctric_EyE
PostPosted: Fri Jan 02, 2015 11:32 pm
Offline

Joined: Mon Mar 02, 2009 7:27 pm
Posts: 3258
Location: NC, USA

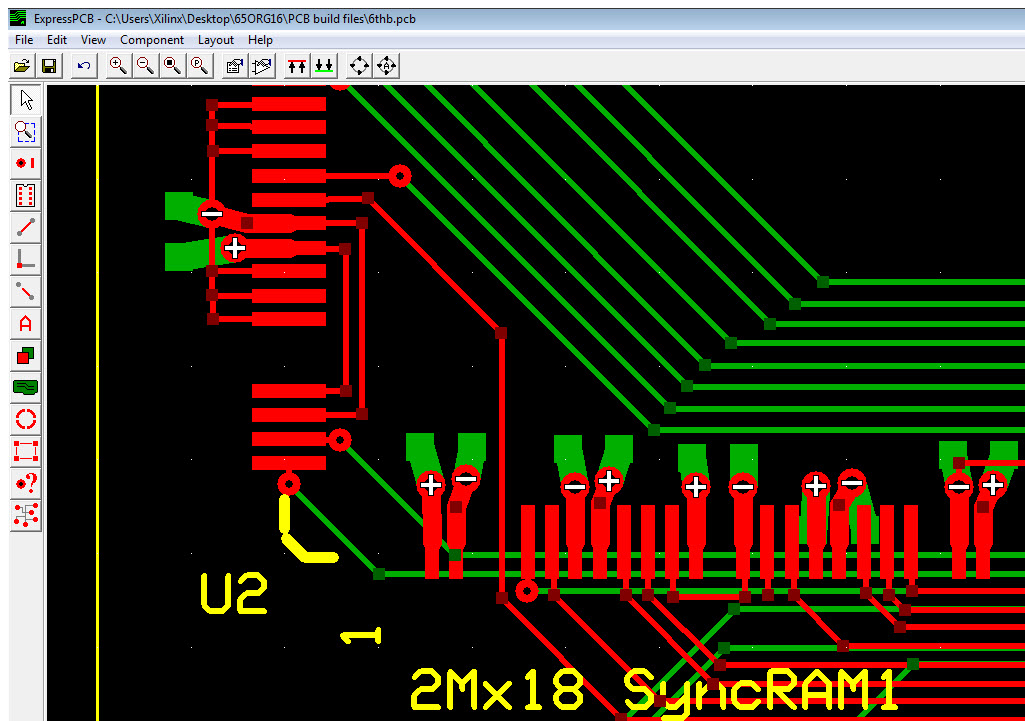

Back on Dec 13 when I posted a pic of the PCB layout, a data bus trace was left unconnected. That was the 2nd iteration of the design. I realized this error at the final 6th iteration! Quite a PITA after the board fills up and things get tight after 2 more weeks of development. Errors like this make it a real challenge to re-route so many pad-pad traces! But I did it with some sort of inner pleasure. :twisted: I've got my finger on the trigger now for EPCB production. :)


Attachments:
wiring error.jpg
wiring error.jpg [ 270.44 KiB | Viewed 1038 times ]

_________________
65Org16:https://github.com/ElEctric-EyE/verilog-6502
Top
 Profile
Reply with quote
ElEctric_EyE
PostPosted: Sun Jan 04, 2015 9:54 pm
Offline

Joined: Mon Mar 02, 2009 7:27 pm
Posts: 3258
Location: NC, USA
I decided to do a few schematics for a few sections of the board.

The Power Supply Section is documented, that pic is next. I'm currently working on the FPGA SPI PROMs next. Finally, the Programmable Oscillator Section. A Block diagram will finish off the visual description of this design.

Comments/critiques welcome as always! You all have been a great help spotting bungling errors.

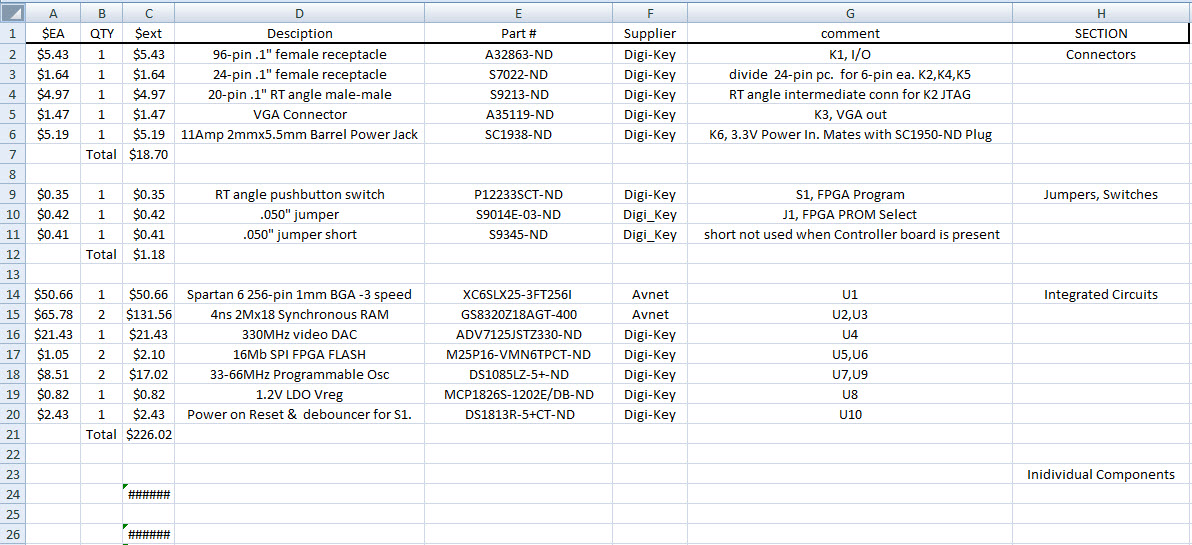

BOM is complete:


Attachments:
1-4-2015 4-36-28 PM.jpg
1-4-2015 4-36-28 PM.jpg [ 584.23 KiB | Viewed 1018 times ]

_________________
65Org16:https://github.com/ElEctric-EyE/verilog-6502
Top
 Profile
Reply with quote
ElEctric_EyE
PostPosted: Sun Jan 04, 2015 9:55 pm
Offline

Joined: Mon Mar 02, 2009 7:27 pm
Posts: 3258
Location: NC, USA

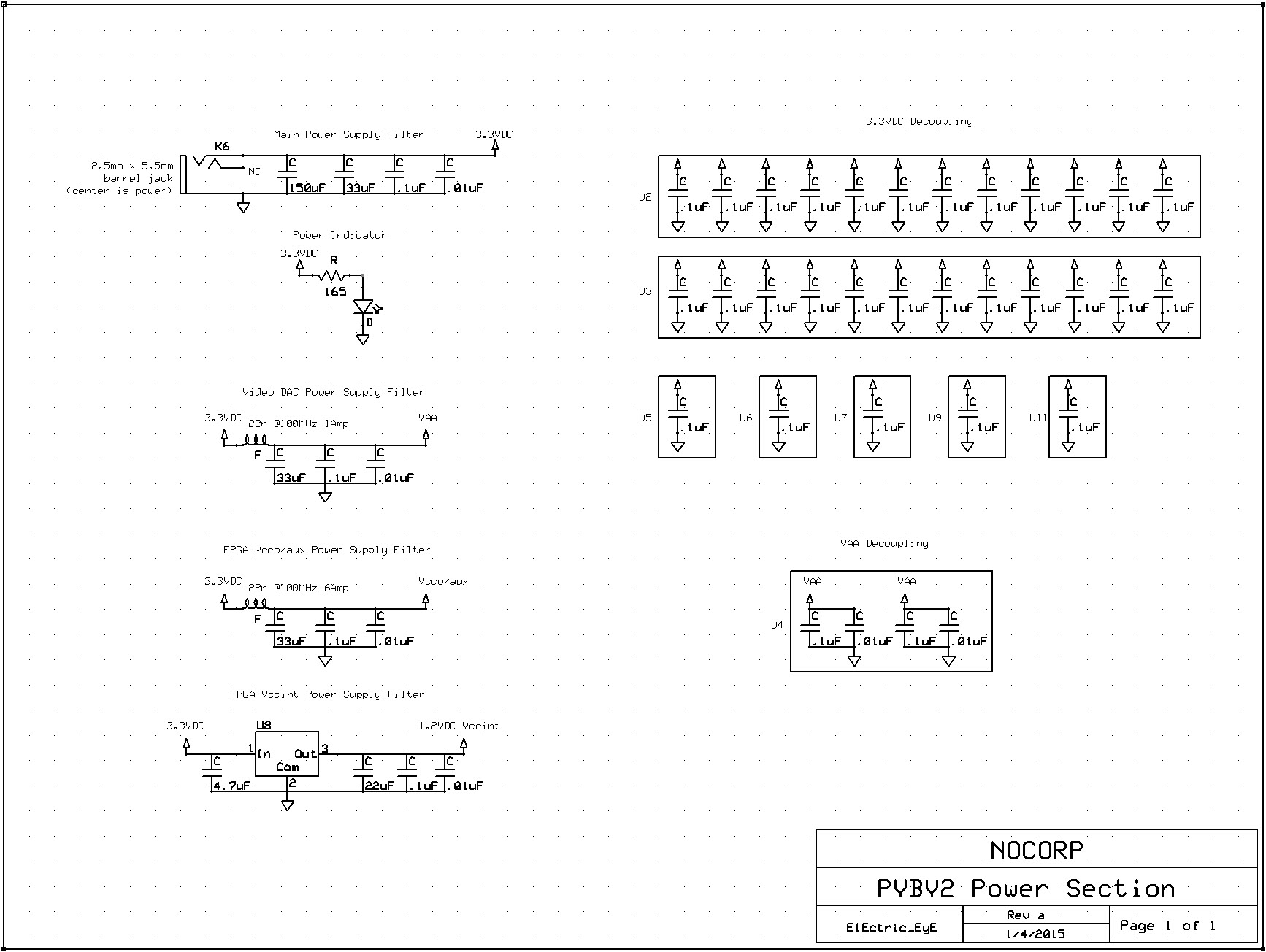

Power Supply Section:


Attachments:
1-4-2015 4-08-46 PM.jpg
1-4-2015 4-08-46 PM.jpg [ 262.51 KiB | Viewed 941 times ]

_________________
65Org16:https://github.com/ElEctric-EyE/verilog-6502
Top
 Profile
Reply with quote
ElEctric_EyE
PostPosted: Mon Jan 05, 2015 3:56 pm
Offline

Joined: Mon Mar 02, 2009 7:27 pm
Posts: 3258
Location: NC, USA

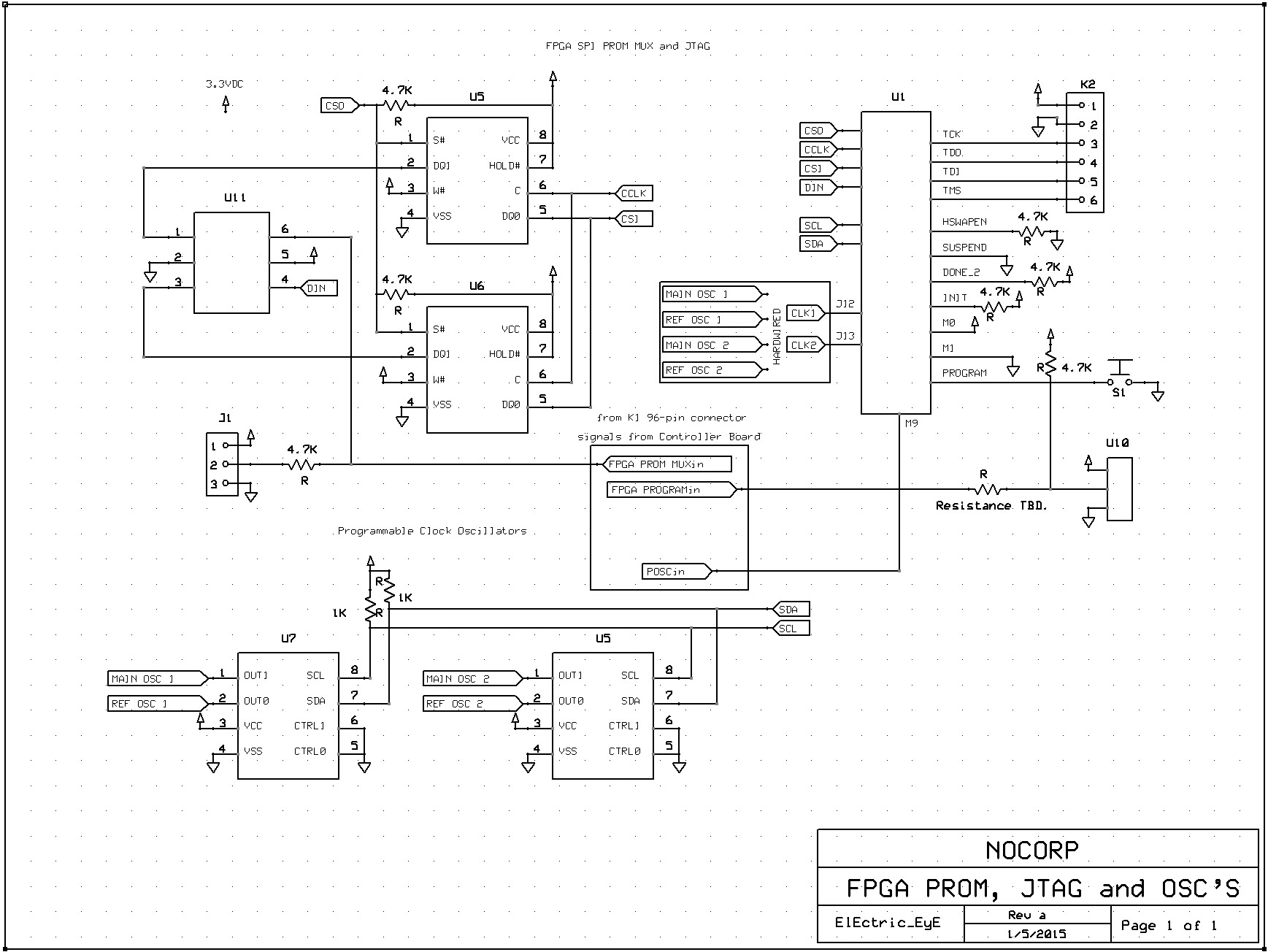

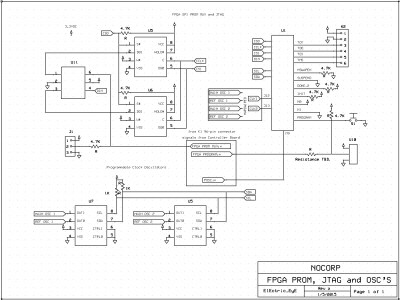

FPGA SPI PROM MUX, JTAG and Programmable Oscillators. The DS1085L-5 programmable oscillators are programmed by an I2C bus, which (I almost forgot) uses external pull up resistors. The Spartan 6 user guide UG381, pg.35 spec's that lines with IOSTANDARD I2C are to be pulled to 3.3V through 1K resistors. I'll have to add these 2 resistors to the BOM and update the constraints file.

Also, there is a potential conflict if a user decides to push the Program at the same time an incoming FPGA Program signal is present from the Controller Board. A resistor is there with a TDB value to save an FPGA output pin from damage. Also, there is the fact that when U11 (DS1813) senses a low input (from either the switch or control signal), it holds the line low for 150ms.


Attachments:
1-5-2015 10-09-32 AM.jpg
1-5-2015 10-09-32 AM.jpg [ 274.26 KiB | Viewed 909 times ]

_________________
65Org16:https://github.com/ElEctric-EyE/verilog-6502
Top
 Profile
Reply with quote
ElEctric_EyE
PostPosted: Mon Jan 05, 2015 8:46 pm
Offline

Joined: Mon Mar 02, 2009 7:27 pm
Posts: 3258
Location: NC, USA

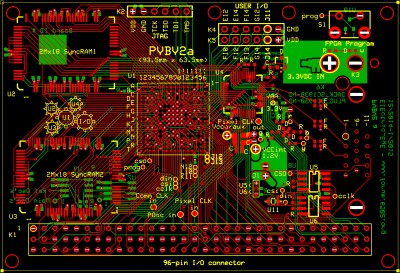

It's in their queue.
We'll see what kind of maker I am...
I'm breaking some PCB layout rules, which I've done before apparently successfully.
The last modification I went with was to use .5mm (.020") BGA pads instead of the recommended .4mm (.016") BGA pads.
My bypass caps are totally out of spec according to Xilinx UG393.
We shall see, *sigh*.
This is what happens in a design when there's a limited number of layers and board space!


Attachments:
File comment: PVBV2h
1-5-2015 3-32-46 PM.jpg
1-5-2015 3-32-46 PM.jpg [ 4.2 MiB | Viewed 908 times ]

_________________
65Org16:https://github.com/ElEctric-EyE/verilog-6502
Top
 Profile
Reply with quote
ElEctric_EyE
PostPosted: Mon Jan 05, 2015 9:54 pm
Offline

Joined: Mon Mar 02, 2009 7:27 pm
Posts: 3258
Location: NC, USA

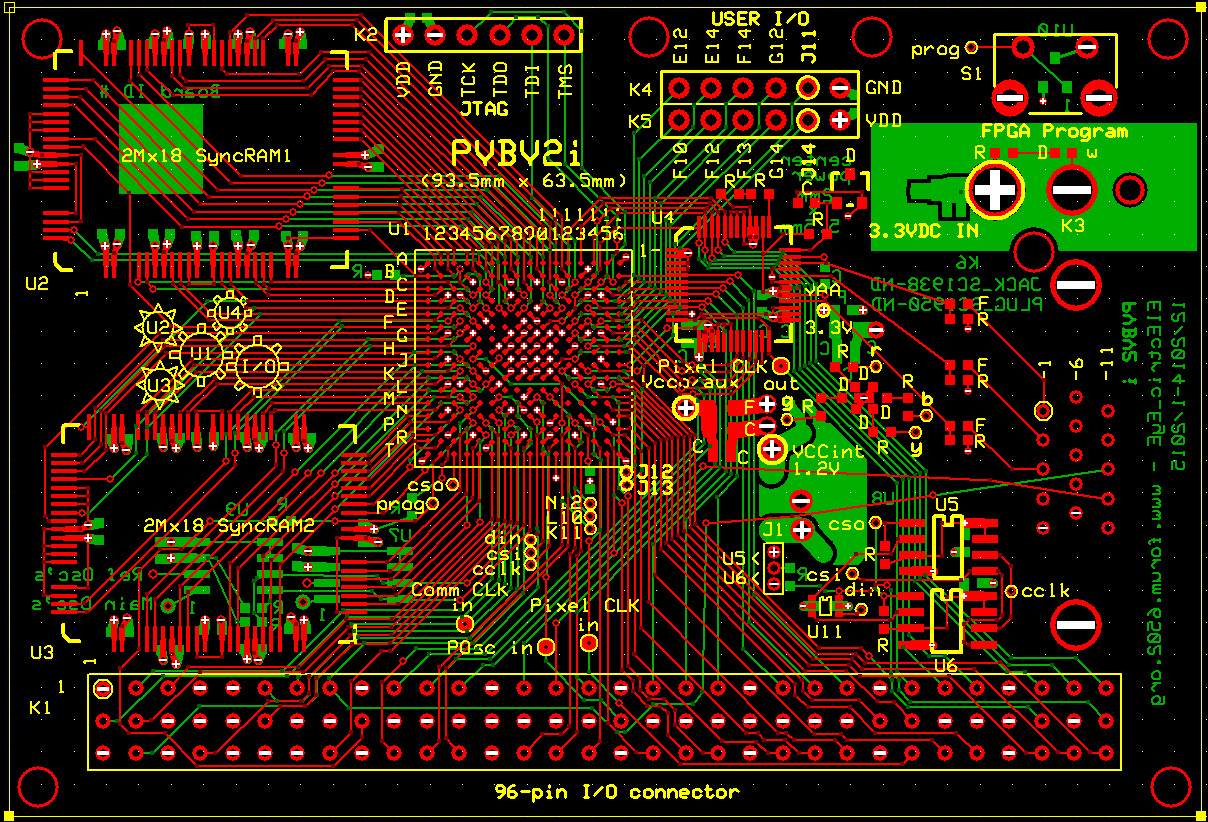

I already see I could have shortened the HSYNC & VSYNC traces from the VGA connector to the FPGA, sh*t!
Already working on version i, just a few changes. It shouldn't hamper operation. I'll wait for further issues to develop before ordering PVBV2i


Attachments:
1-5-2015 4-49-43 PM.jpg
1-5-2015 4-49-43 PM.jpg [ 882.02 KiB | Viewed 901 times ]

_________________
65Org16:https://github.com/ElEctric-EyE/verilog-6502
Top
 Profile
Reply with quote
ElEctric_EyE
PostPosted: Thu Jan 08, 2015 1:18 am
Offline

Joined: Mon Mar 02, 2009 7:27 pm
Posts: 3258
Location: NC, USA
The boards are due by next tuesday.

So to try to coordinate the boards & parts arriving at similar times, I ordered most parts from the BOM. Just about everything has been ordered except the 2 SyncRAMs ($131US), as I am going to harvest them from 2 of the original PVBs. $131US saved there from the BOM...

Also, 2nd most expensive are the FPGA's @ $50 each. I did have to purchase 2 of the leaded versions of the S6LX25 from Avnet, because I've read that they're easier to mount to the board.

I'm really looking forward to this new experience of SMT "reflow" using solder paste+flux and a hot plate for the parts on top of the board. For parts on the bottom I expect to use the solder paste+flux, and hot air from my reflow station. I had always hand soldered the 0603 parts and .5mm QFP parts by hand with ultra thin solder!

I also have this USB microscope to help me out visually after reflowing.

_________________
65Org16:https://github.com/ElEctric-EyE/verilog-6502
Top
 Profile
Reply with quote
ElEctric_EyE
PostPosted: Mon Jan 12, 2015 11:06 pm
Offline

Joined: Mon Mar 02, 2009 7:27 pm
Posts: 3258
Location: NC, USA
Just got my boards! 1 day early!
Spartan 6's XC6SLX25 wont arrive for 2 more days

_________________
65Org16:https://github.com/ElEctric-EyE/verilog-6502
Top
 Profile
Reply with quote
ElEctric_EyE
PostPosted: Mon Jan 12, 2015 11:37 pm
Offline

Joined: Mon Mar 02, 2009 7:27 pm
Posts: 3258
Location: NC, USA

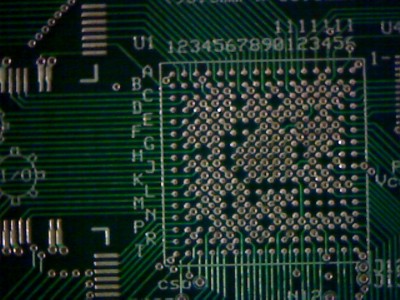

Focusing in on the 16x16 BGA pads...
Solder paste?! Are you Fin kidding me? Not meant for 1mm BGA pads with vias in the middle.


Attachments:
LX25 Production Pads.jpg
LX25 Production Pads.jpg [ 580.41 KiB | Viewed 844 times ]

_________________
65Org16:https://github.com/ElEctric-EyE/verilog-6502
Top
 Profile
Reply with quote
BitWise
PostPosted: Tue Jan 13, 2015 8:23 am
Offline
User avatar

Joined: Tue Mar 02, 2004 8:55 am
Posts: 996
Location: Berkshire, UK
Did you get a stencil with your boards? Some board shops provide them free if there are SMT pads on the board.

_________________
Andrew Jacobs
6502 & PIC Stuff - http://www.obelisk.me.uk/
Cross-Platform 6502/65C02/65816 Macro Assembler - http://www.obelisk.me.uk/dev65/
Open Source Projects - https://github.com/andrew-jacobs
Top
 Profile
Reply with quote
BigEd
PostPosted: Tue Jan 13, 2015 9:52 am
Offline
User avatar

Joined: Thu Dec 11, 2008 1:28 pm
Posts: 10799
Location: England
Oh dear - is it normal to cover the via ring with soldermask?
Top
 Profile
Reply with quote
ElEctric_EyE
PostPosted: Tue Jan 13, 2015 12:14 pm
Offline

Joined: Mon Mar 02, 2009 7:27 pm
Posts: 3258
Location: NC, USA
BigEd wrote:
Oh dear - is it normal to cover the via ring with soldermask?

This is going to cost me big time, at least I didn't bother to solder anything yet. Good eye Ed.
This topic came up before too, but I don't think I had fully realized... I don't feel too well.
I emailed EPCB support to see if it is at all possible to choose soldermask over a via.

_________________
65Org16:https://github.com/ElEctric-EyE/verilog-6502
Top
 Profile
Reply with quote
Display posts from previous:  Sort by
Post new topic Reply to topic  Page 3 of 8
  [ 110 posts ]  Go to page Previous  1, 2, 3, 4, 5, 6 ... 8  Next

Board index » 6502.org Users Forum » Programmable Logic

All times are UTC


Who is online

Users browsing this forum: No registered users and 3 guests

You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot post attachments in this forum

Search for:
Jump to:
6502.org is an ongoing project by Mike Naberezny and contributors.
